Signal analyser PFN66-EQAD9-121 FEMTO ECT NET WI-FI EDA D6 PQ WEB LOG

for electrical networkspower qualityenergy

Overview

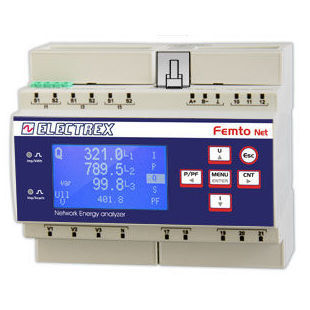

Power Quality Energy Analyzer & Wi‑Fi Web Data Manager with external antenna (PFC3530 included). Power quality analysis compliant with EN 50160 and EN 61000-4-30. Accuracy class 0.5S; single harmonics up to the 51st order. Designed for use with ECT external current transformers (not included) — examples: PFAE000-01, PFAE000-02, PFAE000-03. Acts as a network bridge between RJ45 and/or Wi‑Fi and RS485 for Modbus communication and data logging. Device package includes software upgrades: 2×PFSU940-01 (Log 8), 1×PFSU940-25 (Open Log), 1×PFSU940-05 (Web). Equipped with battery-backed perennial clock, non-volatile memory, remote firmware update, graphic LCD, NFC and ExpBus for external I/O and sensors. DIN-rail mounting, size 6 modules. Power supply 85 ÷ 265 Vac. Compliant with EN 50470-1 and EN 50470-3.

Notes
Femto D6 series devices may be available in other hardware configurations. Refer to the Code Creation Table or the product datasheet for available configurations and ordering codes. ECT external CTs are required but not included.

Compatible current transformers

• Electrex ECT series external current transformers (examples: PFAE000-01, PFAE000-02, PFAE000-03)

Technical specifications

• Product family: Femto D6 series
• Function: Power Quality Energy Analyzer & Wi‑Fi Web Data Manager
• Wi‑Fi: via external antenna (PFC3530 included)
• Standards: EN 50160, EN 61000-4-30
• Accuracy class: 0.5S
• Harmonics: single harmonics up to 51st order
• Current transformers: for use exclusively with ECT external CTs (not included)
• Network bridge: RJ45 and/or Wi‑Fi to RS485 for Modbus communication and data logging
• Included software upgrades: 2×PFSU940-01 (Log 8), 1×PFSU940-25 (Open Log), 1×PFSU940-05 (Web)
• Clock & memory: battery-backed perennial clock; non-volatile memory
• Firmware: remote firmware update supported
• User interface: graphic LCD display
• Digital I/O: 2 digital inputs, 2 digital outputs with separate commons
• Indicators: 2 calibration LEDs
• Expansion: ExpBus for external devices (I/O and environmental sensors)
• Connectivity: NFC
• Mounting: DIN rail, size 6 modules
• Power supply: 85 ÷ 265 Vac
• Compliance: EN 50470-1 and EN 50470-3
