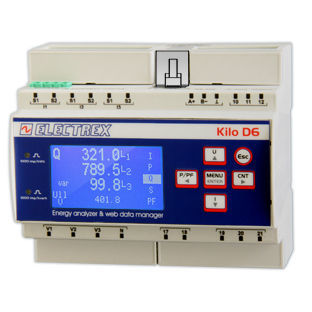

Monitoring analyzer PFNK6-FQ7D9-0MM KILO F RJ45 D6 PQ

for electrical networksAC energy networkpower quality

Overview
Power Quality Energy Analyzer & Data Manager offering power quality analysis compliant with EN 50160 and EN 61000-4-30. Accuracy class 0.5S with single harmonics analysis up to the 51st order. Designed for DIN rail mounting (6 modules) and powered by 85 ÷ 265 Vac.

Features

• Power quality analysis (EN 50160 and EN 61000-4-30)
• Accuracy class 0.5S
• Single harmonics measurement up to the 51st order
• Graphic LCD display
• RJ45 and RS485 (slave) communication ports
• Remote firmware update capability
• Perennial battery-powered astronomical clock/calendar and non-volatile memory
• 2 digital inputs (DI) and 2 digital outputs (DO) with separate common (4 common)
• 2 calibration LEDs
• ExpBus for external I/O and environmental sensors
• NFC equipped
• DIN rail size: 6 modules

Compatibility

• To be used exclusively with FCTS series flexible split-core current transformers (CTs not included)

Note
Kilo series devices may be available in other hardware configurations. To build the code with different versions, refer to the Code Creation Table or to the product datasheet.

Technical characteristics

• Product code: PFNK6-FQ7D9-0MM
• Type: Power Quality Energy Analyzer & Data Manager
• Standards: EN 50160, EN 61000-4-30
• Accuracy class: 0.5S
• Harmonics: single harmonics up to 51st order
• Power supply: 85 ÷ 265 Vac
• Communication ports: RJ45, RS485 (slave)
• Display: Graphic LCD
• Inputs/Outputs: 2 digital inputs, 2 digital outputs with separate common
• Calibration indicators: 2 calibration LEDs
• Expansion: ExpBus for external I/O and environmental sensors
• NFC: Yes
• Mounting: DIN rail, 6 modules
• Memory/Clock: Perennial battery-powered astronomical clock/calendar and non-volatile memory
• Firmware: Remote firmware update supported
• Compliance: EN 50470-1 and EN 50470-3
