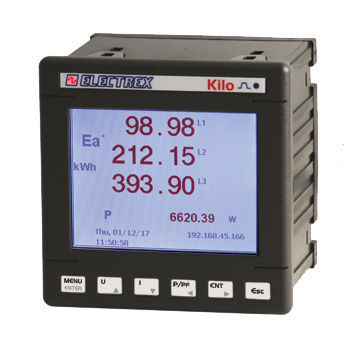

LED analyzer PFNK9-1Q5D9-F21 KILO NET 96 PQ WEB LOG 16 FULL

monitoringfor electrical networksAC energy network

Product overview
Code: PFNK9-1Q5D9-F21. Power Quality Energy Analyzer & Web Data Manager for power quality analysis (EN 50160, EN 61000-4-30). Network bridge between RJ45 and RS485 ports for Modbus communication with Electrex instruments on the subnet. Upgrades included:

• 2 x PFSU940-01 Log 8
• 1 x PFSU940-25 Open Log
• PFSU940-05 Web
• PFSU940-30 Charts
• PFSU940-16 Energy Automation
• PFSU940-15 Email
• PFSU940-20 Calendars

Additional information
Accuracy class 0.5S; single harmonics up to the 51st order. Perennial battery-powered astronomical clock/calendar and non-volatile memory. Remote firmware update capability. Graphic LCD display. 2 digital inputs and 2 digital outputs with separate common. 1 calibration LED. ExpBus for external devices (I/O, environmental sensors). NFC equipped. Dimensions: 96×96 mm. Power supply: 85 ÷ 265 Vac. Complies with EN 50470-1 and EN 50470-3.

Notes
Kilo series devices may be ordered in other hardware configurations. To build the code with different versions refer to the code creation table or to the manufacturer's product datasheet.

Compatible current transformers

• Split series current transformers
• Mini split series current transformers

Technical specifications

• Function: Power Quality Energy Analyzer & Web Data Manager
• Standards: EN 50160, EN 61000-4-30
• Accuracy class: 0.5S
• Harmonics: single harmonics up to the 51st order
• Clock/Memory: perennial battery-powered astronomical clock/calendar; non-volatile memory
• Firmware: remote firmware update
• Display: graphic LCD
• Digital I/O: 2 digital inputs, 2 digital outputs with separate common
• Indicator: 1 calibration LED
• Expansion: ExpBus for external devices (I/O, environmental sensors)
• Connectivity: NFC; network bridge RJ45 ↔ RS485 for Modbus communication
• Dimensions: 96 × 96 mm
• Power supply: 85 ÷ 265 Vac
• Compliance: EN 50470-1, EN 50470-3
