Monitoring analyzer PFNE6-11709-0M0 EXA RJ45 D6

for electrical networksAC energy networkfor networks

Product

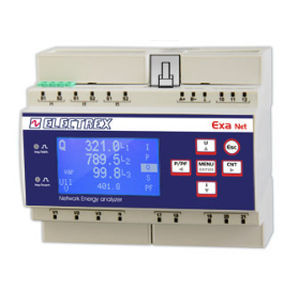

Cod. PFNE6-11709-0M0 - EXA RJ45 D6 ENERGY ANALYZER & DATA MANAGER

Description
Energy analyzer & data manager designed for industrial and harsh environments. Includes an astronomical perpetual battery-powered clock/calendar and non-volatile memory. Supports remote firmware update. Communication via RJ45 and RS485 (slave). FSTN graphic display and 2 calibration LEDs. ExpBus expansion for external devices (I/O, environmental sensors). NFC connectivity for local data exchange. DIN-rail mounting, 6 modules. Power supply 85÷265 Vac. Compliant with EN 50470-1 and EN 50470-3.

Versions and notes
Products in the Exa RJ45, Exa Net, Exa F RJ45 and Exa F Net families may be supplied in other hardware configurations; product codes and options are defined in the "How to order" table or in the product data sheet.

Documentation available

• Product data sheet Exa Net D6 and D96 (PDF)
• "How to order" code table for Net families (PDF)
• Installation instructions Exa RJ45 D6 and Exa Net D6 (PDF)

Technical features / specifications

• Product code: PFNE6-11709-0M0
• Commercial model: EXA RJ45 D6
• Function: Energy analyzer & data manager
• Environment: Suitable for harsh industrial environments
• Clock: Astronomical, perpetual, battery-powered clock/calendar
• Memory: Non-volatile memory
• Firmware: Remote firmware update supported
• Communication ports: RJ45 and RS485 (slave)
• Display: FSTN graphic display
• Indicators: 2 calibration LEDs
• Expansion: ExpBus for external devices (inputs/outputs, environmental sensors)
• Connectivity: NFC
• Mounting: DIN-rail, 6 modules
• Power supply: 85÷265 Vac
• Standards: Compliant with EN 50470-1 and EN 50470-3
