Overview

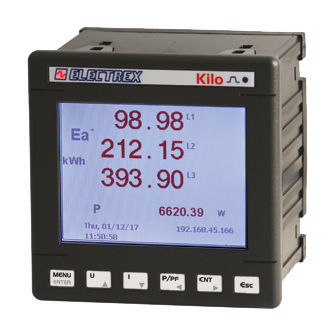

Power Quality Energy Analyzer & Wi‑Fi Web Data Manager PFNK9-1QAD9-121 with Wi‑Fi communication via external antenna (cod. PFC3530) included. Power quality analysis compliant with EN 50160 and EN 61000-4-30. Network bridge between RJ45 and/or Wi‑Fi ports and RS485 for Modbus communication with Electrex instruments on the subnet.

Included upgrades

• 2 x PFSU940-01 Log 8
• 1 x PFSU940-25 Open Log
• PFSU940-05 Web

Main features

• Accuracy class 0.5S; single harmonics up to 51st order
• Perennial battery-powered astronomical clock/calendar and non-volatile memory
• Remote firmware update capability
• Graphic LCD display
• 2 digital inputs (2DI) and 2 digital outputs (2DO) with separate common (4 common)
• 1 calibration LED
• ExpBus for external I/O and environmental sensors
• NFC equipped
• Panel size 96 × 96 mm
• Power supply 85 ÷ 265 Vac
• Communication bridge RJ45 and/or Wi‑Fi to RS485 for Modbus
• Complies with EN 50470-1 and EN 50470-3

NOTE
Kilo series devices may be ordered in other hardware configurations. To build the code with different versions, refer to the code creation table or the product datasheet.

Compatible current transformers

• Split series current transformers
• Mini split series current transformers

Technical specifications

• Product: Power Quality Energy Analyzer & Web Data Manager (Wi‑Fi)
• Model: PFNK9-1QAD9-121 (KILO NET, EDA 96 PQ WEB LOG 16)
• Wi‑Fi communication: external antenna cod. PFC3530 (included)
• Standards: EN 50160, EN 61000-4-30
• Accuracy: class 0.5S
• Harmonics: up to 51st order
• Upgrades included: 2× PFSU940-01, 1× PFSU940-25, PFSU940-05 Web
• Real-time clock: perennial battery-powered astronomical clock/calendar
• Memory: non-volatile
• Firmware: remote update
• Display: graphic LCD
• I/O: 2 DI, 2 DO, 4 common
• Calibration: 1 LED
• Expansion: ExpBus for I/O and sensors
• NFC: yes
• Panel size: 96 × 96 mm
• Power supply: 85 ÷ 265 Vac
• Communication: RJ45 and/or Wi‑Fi to RS485 (Modbus)
• Compliance: EN 50470-1, EN 50470-3
