Monitoring analyzer PFN66-H0A09-110 FEMTO 4HALL NET WI-FI EDA D6 DC WEB LOG 8

for electrical networkselectricindustrial

Overview

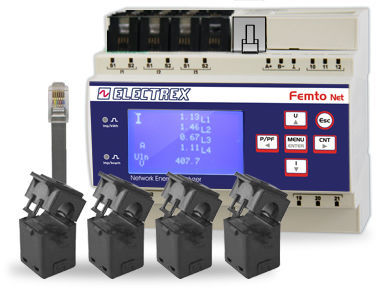

FEMTO 4HALL NET D6 (Cod. PFN66-H0A09-110) is a DC energy analyzer and Wi‑Fi Web Data Manager for industrial monitoring. It supports Wi‑Fi communication via external antenna (PFC3530 included) and provides four DC input channels compatible with split CTs and CTS DC Hall sensors (sensors not included). The instrument features an FSTN graphic display and measures voltage, current, power and energy, plus MIN‑MAX voltage and MAX current. Internal registers are accessible via RJ45 (Modbus/TCP) and/or Wi‑Fi. A network bridge between the RJ45 and RS485 ports enables Modbus communication with other Electrex devices. The device includes a battery‑backed astronomical clock/calendar, non‑volatile industrial memory, built‑in Web and FTP servers, remote firmware update capability and NFC connectivity. DIN‑rail mounting, width 6 modules. Extended power supply range: 85÷265Vac / 100÷374Vdc.

Functions / Applications

• Energy monitoring
• Energy automation and management
• Alarms and notifications
• Scheduled measurements and calendars
• Operating time counters and logging

Key features

• Wi‑Fi via external antenna (PFC3530 included)
• 4 DC input channels for Hall‑effect or split CTs (sensors not included)
• FSTN graphic display for local visualization
• Measurements: voltage, current, power, energy, MIN‑MAX voltage, MAX current
• Modbus/TCP over RJ45 and/or Wi‑Fi; RS485 bridge for Modbus integration
• Integrated Web and FTP servers for data access
• Remote firmware update
• NFC connectivity
• Battery‑backed astronomical clock/calendar; non‑volatile industrial memory
• DIN‑rail mounting, 6 modules
• Extended power supply range 85÷265Vac / 100÷374Vdc

Included upgrades / software

• Upgrade Log 8: logging of load profile and energy consumed/produced
• Upgrade WEB: web interface for live measurements

Technical specifications

• Product code: PFN66-H0A09-110
• Commercial model: FEMTO 4HALL NET D6
• Power supply: 85÷265Vac / 100÷374Vdc (extended range)
• DC monitoring inputs: 4 (compatible with split CTs / CTS DC Hall series)
• Display: FSTN graphic display
• Measurements: voltage, current, power, energy; MIN‑MAX voltage; MAX current
• Communications: RJ45 (Modbus/TCP), Wi‑Fi (external antenna included), RS485 bridge for Modbus
• Network services: integrated Web server and FTP server
• Connectivity: NFC
• Timekeeping: battery‑backed astronomical clock/calendar
• Memory: non‑volatile industrial memory for logging
• Mounting: DIN‑rail, 6 modules width
• Firmware: remote update capable
