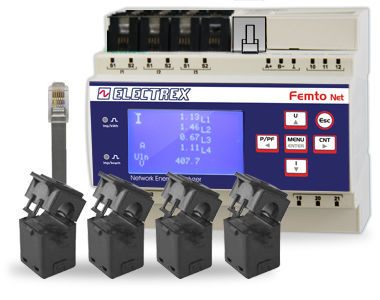

Monitoring analyzer PFN66-H0708-0M0 FEMTO 4HALL RJ45 D6industrialpowervoltage
Add to favorites
Compare this product
Characteristics
- Application domain
- monitoring, industrial
- Measured value
- power, voltage, energy
- Configuration
- DIN rail
- Other characteristics
- digital, with data logger, data acquisition, graphic, four-channel
Description
Description
DC energy analyzer and data manager with RJ45 Ethernet port supporting Modbus/TCP. Four DC inputs compatible with split CT / CTS DC Hall series (sensors not included). FSTN graphic display. Measures voltage, current, power and energy, including MIN–MAX voltage and MAX current. Internal registers accessible via RJ45/Modbus-TCP. Battery-backed astronomical clock/calendar and non-volatile industrial memory for logging load profiles and energy produced/consumed. Built-in WEB and FTP servers. Additional functions unlocked via PUK code. Remote firmware update and NFC connectivity. DIN-rail mounting, 6 modules wide. Extended power supply range 15÷36Vac / 18÷60Vdc.
Applications / Functions
Product code
Cod. PFN66-H0708-0M0
Technical specifications
DC energy analyzer and data manager with RJ45 Ethernet port supporting Modbus/TCP. Four DC inputs compatible with split CT / CTS DC Hall series (sensors not included). FSTN graphic display. Measures voltage, current, power and energy, including MIN–MAX voltage and MAX current. Internal registers accessible via RJ45/Modbus-TCP. Battery-backed astronomical clock/calendar and non-volatile industrial memory for logging load profiles and energy produced/consumed. Built-in WEB and FTP servers. Additional functions unlocked via PUK code. Remote firmware update and NFC connectivity. DIN-rail mounting, 6 modules wide. Extended power supply range 15÷36Vac / 18÷60Vdc.
Applications / Functions
- Energy monitoring
- Energy automation
- Alarms and notifications
- Calendar scheduling
- Operating time counters
Product code
Cod. PFN66-H0708-0M0
Technical specifications
- Model: FEMTO 4HALL D6
- Type: DC Energy Analyzer & Data Manager
- Inputs: 4 DC inputs suitable for split CT / CTS DC Hall series (sensors not included)
- Display: FSTN graphic display
- Measurements: voltage, current, power, energy; MIN–MAX voltage; MAX current
- Communication: RJ45 Ethernet port; Modbus/TCP protocol; WEB and FTP servers; NFC connectivity
- Logging: non-volatile industrial memory for load profile and energy produced/consumed
- Clock/Calendar: battery-backed astronomical clock/calendar
- Firmware: remote firmware update; additional functions via PUK code entry
- Mounting: DIN-rail mount, 6 modules
- Power supply: extended range 15÷36Vac / 18÷60Vdc
- Form factor: DIN-rail device, 6 modules wide
