Monitoring analyzer PFNK9-1QAD9-121 KILO NET WI-FI EDA 96 PQ WEB LOG
for electrical networksfor networksindustrial

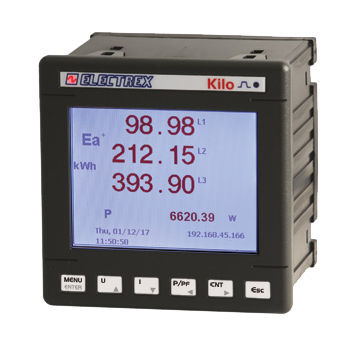

Monitoring analyzer - PFNK9-1QAD9-121 KILO NET WI-FI EDA 96 PQ WEB LOG - ELECTREX - for electrical networks / for networks / industrial
Monitoring analyzer - PFNK9-1QAD9-121 KILO NET WI-FI EDA 96 PQ WEB LOG - ELECTREX - for electrical networks / for networks / industrial
Add to favorites
Compare this product
Go to the ELECTREX website for more information

Characteristics

Application domain
monitoring, for electrical networks, industrial, for networks
Measured value
power quality, power, energy
Other characteristics
RS485, data acquisition, battery-powered, graphic, DIN 96x96

Description

Product overview
PFNK9-1Q5D9-A21 KILO NET 96 Power Quality Energy Analyzer & Web Data Manager. Provides power quality analysis compliant with EN 50160 and EN 61000-4-30. Acts as a network bridge between RJ45 and RS485 ports for Modbus communication with Electrex instruments in the subnet. Includes optional software/upgrades for logging, web access and charting functions.

Included / upgrade options
  • n. 2 PFSU940-01 Log 8
  • n. 1 PFSU940-25 Open Log
  • PFSU940-05 Web
  • PFSU940-30 Charts

Features
  • Accuracy class 0.5S
  • Single harmonics measurement up to the 51st order
  • Perennial battery-powered astronomical clock/calendar
  • Non-volatile memory
  • Remote firmware update capability
  • Graphic LCD display
  • 2 digital inputs and 2 digital outputs with separate common
  • 1 calibration LED
  • ExpBus for external I/O and environmental sensors
  • NFC equipped

Mechanical & electrical
  • Size: 96 × 96 mm
  • Power supply: 85 ÷ 265 Vac
  • Complies with EN 50470-1 and EN 50470-3

Notes
The Kilo series devices may be ordered in different hardware configurations. To build the correct ordering code, refer to the code creation table or to the product datasheet. Current transformers compatible with this version are available in the Split series and Mini series split current transformers sections.

Technical specifications
  • Product code: PFNK9-1Q5D9-A21
  • Function: Power Quality Energy Analyzer & Web Data Manager
  • Standards: EN 50160, EN 61000-4-30
  • Accuracy: Class 0.5S
  • Harmonics: Single harmonics up to 51st order
  • Real-time clock: Perennial battery-powered astronomical clock/calendar
  • Memory: Non-volatile memory
  • Firmware: Remote update supported
  • Display: Graphic LCD
  • Digital I/O: 2 DI, 2 DO with separate common
  • Indicators: 1 calibration LED
  • Expansion: ExpBus for external I/O and environmental sensors
  • Connectivity: RJ45 and RS485 (Modbus), network bridge functionality
  • Extra: NFC equipped
  • Dimensions: 96×96 mm
  • Supply voltage: 85 ÷ 265 Vac
  • Compliance: EN 50470-1, EN 50470-3
  • Available upgrades: PFSU940-01 (Log 8), PFSU940-25 (Open Log), PFSU940-05 (Web), PFSU940-30 (Charts)
