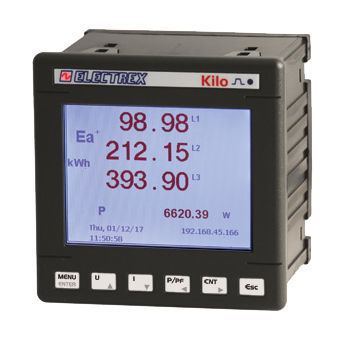

Monitoring analyzer PFNK9-FQ5D9-121 KILO F NET 96 PQ WEB LOG

for electrical networksindustrialpower quality

Overview
Power Quality Energy Analyzer & Web Data Manager for industrial networks. Performs power quality analysis according to EN 50160 and EN 61000-4-30 with accuracy class 0.5S. Measures single harmonics up to the 51st order. Designed to work exclusively with FCTS series flexible split-core current transformers (CTs not included). Includes network bridge between RJ45 and RS485 for Modbus communication with Electrex instruments on the subnet. Supplied with software upgrades: 2 × PFSU940-01 (Log 8), 1 × PFSU940-25 (Open Log), PFSU940-05 (Web). Battery-powered astronomical clock/calendar and non-volatile memory. Remote firmware update supported. Graphic LCD display and 1 calibration LED. 2 digital inputs and 2 digital outputs with separate common. ExpBus for external devices and environmental sensors. NFC equipped. Size 96×96 mm. Power supply 85 ÷ 265 Vac. Complies with EN 50470-1 and EN 50470-3.

Note
Kilo series devices may be ordered in other hardware configurations. To build the product code for different versions, refer to the code creation table or the product datasheet available from the manufacturer.

Compatible current transformers

• FCTS series flexible split-core current transformers

Technical specifications

• Product code: PFNK9-FQ5D9-121
• Commercial name: KILO F NET 96
• Type: Power Quality Energy Analyzer & Web Data Manager
• Standards: EN 50160, EN 61000-4-30
• Accuracy class: 0.5S
• Harmonics: single harmonics up to 51st order
• CT compatibility: FCTS series flexible split-core CTs (not included)
• Network: RJ45 ↔ RS485 bridge for Modbus communication with Electrex instruments
• Included upgrades: 2 × PFSU940-01 (Log 8), 1 × PFSU940-25 (Open Log), PFSU940-05 (Web)
• Clock / memory: battery-powered astronomical clock/calendar, non-volatile memory
• Firmware: remote firmware update supported
• Display: graphic LCD
• Digital I/O: 2 DI, 2 DO with separate common
• Indicator: 1 calibration LED
• Expansion: ExpBus for external devices and environmental sensors
• Other: NFC equipped
• Dimensions: 96 × 96 mm
• Power supply: 85 ÷ 265 Vac
• Compliance: EN 50470-1, EN 50470-3
