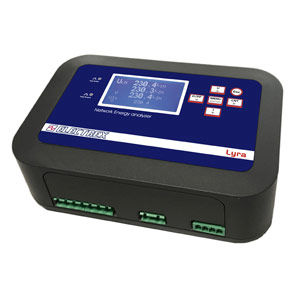

Electrical network analyzer PFALT-EHA090-110 LYRA ECT NET WI-FI EDA H WEB LOG 8AC energy networkindustrialpower quality
Add to favorites
Compare this product
Characteristics
- Application domain
- for electrical networks, AC energy network, industrial
- Measured value
- power quality, voltage, energy
- Configuration
- wall-mounted
- Detector type
- FFT
- Other characteristics
- digital, RS485, with data logger, data acquisition, battery-powered, wireless
Description
Overview
Lyra ECT Net H is an energy analyzer and Wi‑Fi Web Data Manager in a compact case suitable for wall or panel installation where DIN-rail space is unavailable. It measures electrical parameters in low-voltage applications and records energy vectors and other energy carriers for analysis.
Key Features
Documentation
Datasheet and additional product PDFs available for download (PDF format).
Technical specifications
Lyra ECT Net H is an energy analyzer and Wi‑Fi Web Data Manager in a compact case suitable for wall or panel installation where DIN-rail space is unavailable. It measures electrical parameters in low-voltage applications and records energy vectors and other energy carriers for analysis.
Key Features
- Wi‑Fi communication via external antenna (cod. PFC3530) included.
- Measures individual harmonics up to the 51st order.
- Uses exclusively Electrex ECT current transformers.
- Ethernet connectivity via RJ45 connector.
- Connectors for Electrex environmental sensors.
- RS485 Master interface to connect Lyra ECT RS485 Two Energy Analyzer, Lyra I‑O or third-party RS485 Modbus RTU devices.
- Available also as a battery-powered version.
- Feature: Web Log 8 for web data management.
Documentation
Datasheet and additional product PDFs available for download (PDF format).
Technical specifications
- Model family: Lyra ECT Net H
- Product code: PFALT-EHA090-110
- Function: Energy analyzer & Web Data Manager
- Supply / operating voltage: 85÷265V
- Communications: Wi‑Fi (external antenna cod. PFC3530 included), Ethernet (RJ45), RS485 (Modbus RTU)
- Measurement scope: electrical parameters in low-voltage applications; datalogging of energy vectors
- Harmonics: individual harmonics up to 51st order
- Current transformers: compatible with and uses Electrex ECT CTs
- Form factor: case for wall or panel installation where DIN-rail space is limited
- Sensor support: connectors for Electrex environmental sensors
- Interoperability: connects Lyra ECT RS485 Two, Lyra I‑O or other RS485 Modbus RTU devices
- Power options: mains (85÷265V) and optional battery-powered version
