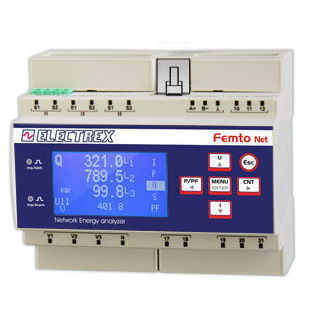

Monitoring analyzer PFN66-EQ5D9-A21 FEMTO ECT NET D6 PQ WEB LOG 16 CHARTS

for electrical networksindustrialpower

Product overview
Power Quality Energy Analyzer & Web Data Manager for industrial monitoring and centralized data logging. Power quality analysis compliant with EN 50160 and EN 61000-4-30. Accuracy class 0.5S with single-harmonic measurements up to the 51st order. Designed for exclusive use with external ECT current transformers (not included). Supports network bridging between RJ45 and RS485 for Modbus communication with other Electrex instruments.

Compatibility and current transformers

• To be used exclusively with ECT external CTs (examples: PFAE000-01, PFAE000-02, PFAE000-03)
• Electrex ECT series current transformers are compliant with this Femto D6 version

Upgrades included

• 2 x PFSU940-01 Log 8
• 1 x PFSU940-25 Open Log
• 1 x PFSU940-05 Web
• 1 x PFSU940-30 Charts

Features

• Power quality analysis according to EN 50160 and EN 61000-4-30
• Accuracy class 0.5S
• Single harmonics measurement up to the 51st order
• Network bridge between RJ45 and RS485 for Modbus communication
• Perennial, battery-powered clock and non-volatile memory
• Remote firmware update capability
• Graphic LCD display
• 2 digital inputs and 2 digital outputs with separate common
• 2 calibration LEDs
• ExpBus for external devices (I/O, environmental sensors)
• NFC connectivity
• DIN rail size: 6 modules
• Power supply: 85 ÷ 265 Vac
• Compliant with EN 50470-1 and EN 50470-3

Note
Femto D6 series devices may be offered in other hardware configurations. Refer to the code creation table or the product datasheet to build different versions. Current transformers compatible with this version are available in the Electrex ECT series accessory sections.

Technical specifications

• Product code: PFN66-EQ5D9-A21
• Type: Power quality energy analyzer and web data manager
• Standards for power quality analysis: EN 50160; EN 61000-4-30
• Accuracy class: 0.5S
• Harmonics: Single harmonics up to the 51st order
• Required CT: External ECT series CTs (not included)
• Communication: RJ45 (Ethernet), RS485 (Modbus), network bridge between RJ45 and RS485
• Upgrades included: 2 x PFSU940-01 Log 8; 1 x PFSU940-25 Open Log; 1 x PFSU940-05 Web; 1 x PFSU940-30 Charts
• Memory/clock: Battery-powered clock, non-volatile memory
• Firmware: Remote firmware update supported
• Display: Graphic LCD
• Digital I/O: 2 digital inputs, 2 digital outputs with separate common
• Indicators: 2 calibration LEDs
• Expansion: ExpBus for external I/O and sensors
• Connectivity: NFC
• Mounting: DIN rail, 6 modules
• Supply voltage: 85 ÷ 265 Vac
• Compliance: EN 50470-1, EN 50470-3
