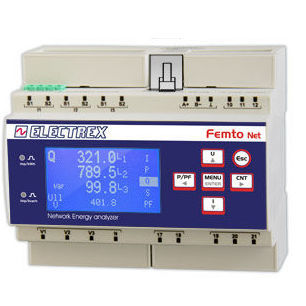

Monitoring analyzer PFN66-EH709-0M0 FEMTO ECT RJ45 D6 Hfor electrical networksAC energy networkindustrial
Add to favorites
Compare this product
Characteristics
- Application domain
- monitoring, for electrical networks, AC energy network, industrial
- Measured value
- harmonic, power quality, power, voltage, energy
- Configuration
- DIN rail
- Detector type
- FFT
- Other characteristics
- real-time, RS485, data acquisition, graphic
Description
Product overview
Energy analyzer and data manager for industrial applications. Accuracy class 0.5S with measurement of individual harmonics up to the 51st order. Designed for use with external ECT current transformers (CTs) — not included; examples: PFAE000-01, PFAE000-02, PFAE000-03. Perennial battery-backed real-time clock and non-volatile memory. Remote firmware update supported. Communication ports: RJ45 and RS485 (slave). Graphic LCD display. Two calibration LEDs. ExpBus for external devices (inputs/outputs and environmental sensors). NFC connectivity. DIN-rail mounting, 6-module width. Power supply 85 ÷ 265 Vac. Compliant with EN 50470-1 and EN 50470-3.
Available documents
Datasheets: Femto ECT D6 and Femto 25A D D6; ECT CT datasheet (PDFs available from the manufacturer).
Technical features / Specifications
Energy analyzer and data manager for industrial applications. Accuracy class 0.5S with measurement of individual harmonics up to the 51st order. Designed for use with external ECT current transformers (CTs) — not included; examples: PFAE000-01, PFAE000-02, PFAE000-03. Perennial battery-backed real-time clock and non-volatile memory. Remote firmware update supported. Communication ports: RJ45 and RS485 (slave). Graphic LCD display. Two calibration LEDs. ExpBus for external devices (inputs/outputs and environmental sensors). NFC connectivity. DIN-rail mounting, 6-module width. Power supply 85 ÷ 265 Vac. Compliant with EN 50470-1 and EN 50470-3.
Available documents
Datasheets: Femto ECT D6 and Femto 25A D D6; ECT CT datasheet (PDFs available from the manufacturer).
Technical features / Specifications
- Accuracy class: 0.5S
- Harmonics: individual harmonics up to 51st order
- Compatibility: only with external ECT current transformers (CTs) (not included) — examples: PFAE000-01, PFAE000-02, PFAE000-03
- Real-time clock: battery-backed (perennial)
- Memory: non-volatile
- Firmware: remote firmware update supported
- Communications: RJ45 and RS485 (slave)
- Display: graphic LCD
- Calibration: 2 calibration LEDs
- Expansion: ExpBus for external I/O and environmental sensors
- Connectivity: NFC
- Mounting: DIN rail, 6-module width
- Power supply: 85 ÷ 265 Vac
- Standards: compliant with EN 50470-1 and EN 50470-3
