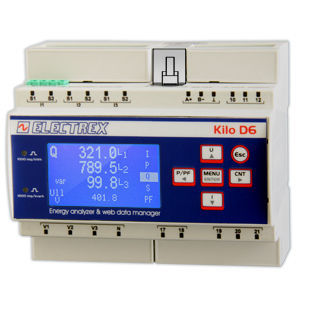

Monitoring analyzer PFNK6-1Q5D9-F21 KILO NET D6 PQ WEB LOG 16 FULL

for electrical networkspower qualitypower

Overview
Power quality energy analyzer and web data manager. Performs power quality analysis compliant with EN 50160 and EN 61000-4-30. Acts as a network bridge between RJ45 and RS485 ports to enable Modbus communication with Electrex instruments on the subnet.

Upgrades included

• 2 × PFSU940-01 Log 8
• 1 × PFSU940-25 Open Log
• PFSU940-05 Web
• PFSU940-30 Charts
• PFSU940-16 Energy Automation
• PFSU940-15 Email
• PFSU940-20 Calendars

Features

• Accuracy class 0.5S
• Single harmonics measurement up to the 51st order
• Perennial, battery-powered astronomical clock and calendar
• Non-volatile memory
• Remote firmware update
• Graphic LCD display
• 2 digital inputs and 2 digital outputs with separate common
• 2 calibration LEDs
• ExpBus for external I/O and environmental sensors
• NFC equipped
• DIN-rail form factor: 6 modules
• Power supply: 85 ÷ 265 Vac
• Complies with EN 50470-1 and EN 50470-3

Compatible current transformers

• Split series current transformers
• Mini series split current transformers

Notes
Kilo series devices may be ordered in alternative hardware configurations. To determine the correct code for different versions, refer to the Code creation table or consult the product datasheet on the product page.

Technical specifications

• Product family: Kilo series
• Commercial denomination (model): KILO NET D6
• Product code: PFNK6-1Q5D9-F21
• Accuracy class: 0.5S
• Harmonics: single harmonics up to the 51st order
• Power quality standards: EN 50160, EN 61000-4-30
• Power supply: 85 ÷ 265 Vac
• Compliance: EN 50470-1 + EN 50470-3
• Clock / calendar: perennial battery-powered astronomical clock and calendar
• Memory: non-volatile memory
• Display: graphic LCD
• Digital I/O: 2 digital inputs, 2 digital outputs, separate common
• Indicators: 2 calibration LEDs
• Expansion: ExpBus for external I/O and environmental sensors
• Connectivity: RJ45 and RS485 (Modbus), network bridge between ports
• NFC: equipped
• Form factor: DIN-rail, 6 modules
• Remote features: remote firmware update
