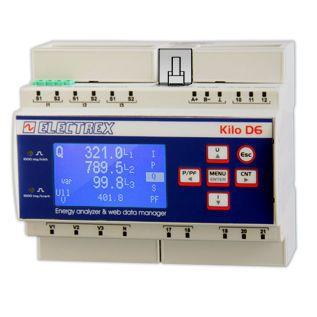

Monitoring analyzer PFNK6-FQ5D9-121 KILO F NET D6 PQ WEB LOG 16

for electrical networksAC energy networkpower quality

Overview
Power quality energy analyzer and web data manager compliant with EN 50160 and EN 61000-4-30. Designed for use with FCTS series flexible split-core CTs (not included). Acts as a network bridge between RJ45 and RS485 ports to enable Modbus communication with Electrex instruments on the subnet. Includes specific upgrade modules as detailed below.

Included / Upgrades

• 2 x PFSU940-01 Log 8
• 1 x PFSU940-25 Open Log
• PFSU940-05 Web

Compatibility

• FCTS series flexible split current transformers (not included)

Product code
PFNK6-FQ5D9-121

Notes
The Kilo series devices are available in multiple hardware configurations; consult the code creation table and product datasheet for available variants. Flexible split-core CTs must be ordered separately from the FCTS series.

Technical specifications

• Function: Power quality energy analyzer and web data manager
• Standards: EN 50160 and EN 61000-4-30
• Accuracy class: 0.5S
• Harmonics: individual harmonics up to 51st order
• Supply voltage: 85 ÷ 265 Vac
• Clock / Memory: Battery-powered perpetual astronomical clock/calendar; non-volatile memory
• Display: Graphic LCD
• Inputs / Outputs: 2 digital inputs and 2 digital outputs with separate commons
• Calibration indicators: 2 calibration LEDs
• Expansion: ExpBus for external devices (I/O, environmental sensors)
• Connectivity: Network bridge between RJ45 and RS485 ports for Modbus communication
• Additional features: NFC equipped; remote firmware update
• Mounting: DIN-rail size 6 modules
• Compliance: EN 50470-1 and EN 50470-3
• Required sensors: Use with FCTS series flexible split-core CTs (not included)
