Electrical network analyzer PFNE6-FH509-110 EXA F NET D6 H WEB LOG 8
industrialpower qualityenergy

Electrical network analyzer - PFNE6-FH509-110 EXA F NET D6 H WEB LOG 8 - ELECTREX - industrial / power quality / energy
Electrical network analyzer - PFNE6-FH509-110 EXA F NET D6 H WEB LOG 8 - ELECTREX - industrial / power quality / energy
Add to favorites
Compare this product
Go to the ELECTREX website for more information

Characteristics

Application domain
for electrical networks, industrial
Measured value
power quality, energy
Configuration
DIN rail
Other characteristics
RS485, with data logger, data acquisition, battery-powered, graphic

Description

Product overview

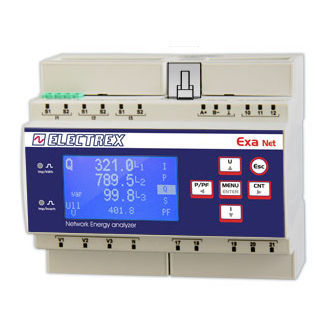

The PFNE6-FH509-110 EXA F NET D6 H is an energy analyzer and Web Data Manager designed for integration in industrial Modbus subnets. Accuracy class 0.5S with single-harmonic measurement up to the 51st order. Compatible only with FCTS series flexible split current transformers (CTs not included). Acts as a network bridge between the RJ45 port and the RS485 port for Modbus communication with other Electrex instruments and for local data storage. Includes PFSU940-01 (Log 8) and PFSU940-05 (Web) upgrades. Perennial battery-backed clock and non-volatile memory ensure data retention. Remote firmware update capability and LCD graphic display for local visualization.

Main features
  • Accuracy class: 0.5S
  • Single harmonic measurement up to the 51st order
  • Compatible only with FCTS flexible split CT series (CTs not included)
  • Network bridge between RJ45 (Ethernet) and RS485 for Modbus communication
  • Includes upgrades: PFSU940-01 (Log 8) and PFSU940-05 (Web)
  • Perennial battery-powered clock and non-volatile memory for reliable data retention
  • Remote firmware update support
  • LCD graphic display for local readings
  • Two calibration LEDs for on-site verification
  • ExpBus interface for external I/O and environmental sensors
  • NFC connectivity for configuration and interaction
  • DIN-rail mounting: occupies 6 modules
  • Wide power supply range: 85 ÷ 265 Vac
  • Standards: EN 50470-1, EN 50470-3

Usage notes
  • Requires FCTS series flexible split CTs to measure current; CTs are not supplied with the device.
  • Functions as a web data manager and energy analyzer; suitable for integration into Modbus subnet architectures via RJ45↔RS485 bridging to communicate with other Electrex devices and central storage.

Technical specifications
  • Model family: EXA series (Exa Net D6 variant), code PFNE6-FH509-110
  • Accuracy: class 0.5S
  • Harmonics: single harmonics up to 51st order
  • Power supply: 85 ÷ 265 Vac
  • Mounting: DIN rail, width 6 modules
  • Display: LCD graphic
  • Connectivity: RJ45 (Ethernet), RS485 (Modbus), NFC, ExpBus
  • Memory: non-volatile memory with battery-backed clock
  • Clock: perennial battery-powered clock
  • Indicators: 2 calibration LEDs
  • Software/firmware: remote firmware update supported; includes Log 8 and Web upgrades (PFSU940-01, PFSU940-05)
  • Compatibility: only with FCTS flexible split CT series
  • Standards compliance: EN 50470-1, EN 50470-3
