Electrical network analyzer PFNE6-1H509-F10 EXA NET D6 H WEB LOG 8 FULL
power qualityharmonicenergy

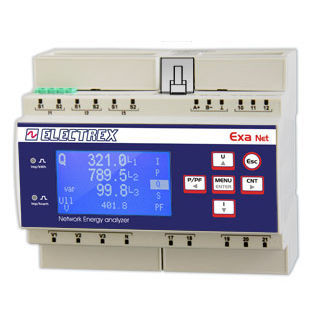

Electrical network analyzer - PFNE6-1H509-F10 EXA NET D6 H WEB LOG 8 FULL - ELECTREX - power quality / harmonic / energy
Electrical network analyzer - PFNE6-1H509-F10 EXA NET D6 H WEB LOG 8 FULL - ELECTREX - power quality / harmonic / energy
Add to favorites
Compare this product
Go to the ELECTREX website for more information

Characteristics

Application domain
for electrical networks
Measured value
harmonic, power quality, energy
Configuration
DIN rail
Detector type
FFT
Other characteristics
real-time, RS485, with data logger, data acquisition, computer-controlled, graphic

Description

Product Overview
PFNE6-1H509-F10 is an energy analyzer and web data manager with accuracy class 0.5S, capable of measuring single harmonics up to the 51st order. It provides an Ethernet (RJ45) to RS485 bridge for Modbus communication with other Electrex instruments and supports local data logging and web-based data management.

Code
Code: PFNE6-1H509-F10

Upgrades included
  • 1 x PFSU940-01 Log 8
  • 1 x PFSU940-25 Open Log
  • PFSU940-05 Web
  • PFSU940-30 Charts
  • PFSU940-16 Energy Automation
  • PFSU940-15 Email
  • PFSU940-20 Calendars


Main features
Perennial battery-backed real-time clock and non-volatile memory. Remote firmware update capability. Graphic LCD display and two calibration LEDs. ExpBus expansion for external inputs/outputs and environmental sensors. NFC connectivity. Compact DIN-rail form factor occupying 6 modules. Power supply 85 ÷ 265 Vac. Complies with EN 50470-1 and EN 50470-3.

Technical specifications
  • Accuracy class: 0.5S
  • Harmonics measurement: single harmonics up to the 51st order
  • Communication: RJ45 (Ethernet) and RS485 bridge for Modbus communication
  • Storage/Logging: Log 8 / Open Log options (see upgrades)
  • Web functions: Web, Charts, Calendars modules available (see upgrades)
  • Automation & Alerts: Energy Automation and Email modules available (see upgrades)
  • Display: LCD graphic display
  • Indicators: 2 calibration LEDs
  • Connectivity: NFC
  • Expansion: ExpBus for external I/O and environmental sensors
  • Power supply: 85 ÷ 265 Vac
  • Form factor: DIN rail – 6 modules
  • Memory & RTC: Non-volatile memory and perennial battery clock
  • Maintenance: Remote firmware update supported
  • Standards: Complies with EN 50470-1 and EN 50470-3


Notes
Devices from the Exa RJ45, Exa Net, Exa F RJ45 and Exa F Net families are available in multiple hardware configurations. Refer to the product code construction table for variant codes. Current transformers for these families are listed in the accessories section.
