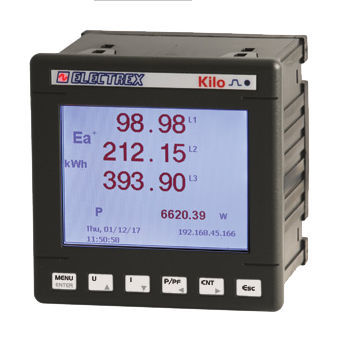

Power Quality Energy Analyzer & Web Data Manager with Wi‑Fi communication via external antenna (cod. PFC3530 included). Power quality analysis compliant with EN 50160 and EN 61000-4-30. Accuracy class 0.5S with single harmonic measurement up to the 51st order. Designed for use with FCTS series flexible split-core CTs (not included). Network bridge between RJ45 and/or Wi‑Fi ports and RS485 port for Modbus communication with Electrex instruments in the subnet.

Included upgrades and functions

• 2 × PFSU940-01 (Log 8)
• 1 × PFSU940-25 (Open Log)
• PFSU940-05 (Web)

Features & hardware
Battery-powered perennial astronomical clock/calendar and non-volatile memory. Remote firmware update supported. Graphic LCD display. 2 digital inputs and 2 digital outputs with separate common. 1 calibration LED. ExpBus for external devices (I/O and environmental sensors). NFC equipped. Panel size 96 × 96 mm. Power supply 85 ÷ 265 Vac. Complies with EN 50470-1 and EN 50470-3.

NOTE
Kilo series devices may be ordered in different hardware configurations. For code assembly and available versions, refer to the code creation table or the product datasheet.

Compatible current transformers

• FCTS series flexible split-core current transformers

Characteristics / technical specifications

• Model: KILO F NET (variant code PFNK9-FQAD9-121)
• Function: Power Quality Energy Analyzer & Web Data Manager
• Communication: Wi‑Fi (external antenna PFC3530 included), RJ45 and RS485 (Modbus)
• Power quality standards: EN 50160 and EN 61000-4-30
• Accuracy: Class 0.5S
• Harmonics: Single harmonics up to 51st order
• CT compatibility: For exclusive use with FCTS flexible split-core CTs (not included)
• Network bridge: Bridge between RJ45 and/or Wi‑Fi and RS485 for Modbus communication with Electrex instruments
• Included upgrades: 2 × PFSU940-01 (Log 8), 1 × PFSU940-25 (Open Log), PFSU940-05 (Web)
• Clock / Memory: Battery-powered astronomical clock/calendar; non-volatile memory
• Firmware: Remote firmware update supported
• Display: Graphic LCD
• Digital I/O: 2 digital inputs, 2 digital outputs with separate common
• Indicator: 1 calibration LED
• Expansion bus: ExpBus for external I/O and environmental sensors
• Other: NFC equipped
• Dimensions: 96 × 96 mm
• Supply voltage: 85 ÷ 265 Vac
• Compliance: EN 50470-1 and EN 50470-3
