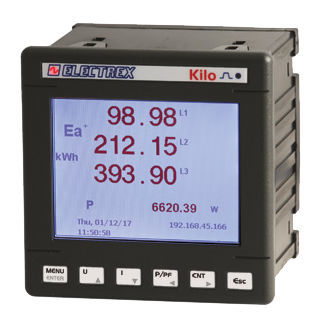

Monitoring analyzer PFNK9-FQ7D9-0MM KILO F RJ45 96 PQ

for electrical networkspower qualitypower

Product overview
Power Quality Energy Analyzer & Data Manager. Product code PFNK9-FQ7D9-0MM. Kilo F series panel instrument (96×96 mm) for power quality monitoring and energy data management. Accuracy class 0.5S with single-harmonic analysis up to the 51st order. Designed for use with FCTS series flexible split-core current transformers (CTs) - CTs not included. Perpetual battery-backed astronomical clock/calendar and non-volatile memory. Remote firmware update capability. RJ45 and RS485 slave communication ports. Graphic LCD display. 2 digital inputs and 2 digital outputs with separate common. 1 calibration LED. Expansion bus (ExpBus) for external I/O and environmental sensors. NFC equipped. Power supply 85 ÷ 265 Vac. Complies with EN 50470-1 and EN 50470-3.

Note
Kilo series devices may be ordered in other hardware configurations. To build the correct product code for different versions, refer to the code creation table or the product datasheet.

Compatible current transformers

• FCTS series flexible split-core current transformers

Characteristics / Technical specifications

• Product code: PFNK9-FQ7D9-0MM
• Function: Power Quality Energy Analyzer & Data Manager
• Power quality standards: EN 50160 and EN 61000-4-30
• Accuracy class: 0.5S
• Single harmonics: up to the 51st order
• Current transformer compatibility: FCTS series flexible split-core CTs (not included)
• Clock/calendar: Perpetual, battery-backed astronomical clock / calendar
• Memory: Non-volatile memory
• Firmware: Remote firmware update supported
• Communication ports: RJ45 and RS485 (slave)
• Display: Graphic LCD display
• Digital I/O: 2 digital inputs and 2 digital outputs with separate common
• Calibration: 1 calibration LED
• ExpBus: Expansion bus for external devices (I/O, environmental sensors)
• Connectivity: NFC equipped
• Panel cutout / size: 96×96 mm
• Power supply: 85 ÷ 265 Vac
• Compliance: EN 50470-1 and EN 50470-3
