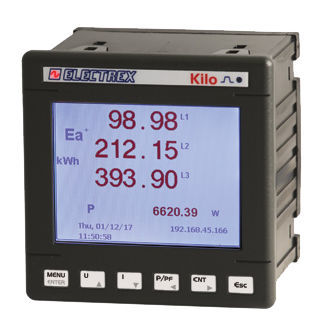

Monitoring analyzer PFNK9-FQ5D9-A21 KILO F NET 96 PQ WEB LOG 16 CHARTS

for electrical networksindustrialpower quality

Overview
Product code PFNK9-FQ5D9-A21. Power Quality Energy Analyzer & Web Data Manager KILO F NET 96. Power quality analysis compliant with EN 50160 and EN 61000-4-30. Accuracy class 0.5S and single harmonics measurement up to the 51st order. Designed for use with FCTS series flexible split-core CTs (sold separately). Network bridge between RJ45 and RS485 for Modbus communication with Electrex instruments on the subnet.

Features

• Power quality analysis (EN 50160 and EN 61000-4-30)
• Accuracy class 0.5S
• Single harmonics measurement up to the 51st order
• Compatible with FCTS series flexible split-core CTs (not included)
• Network bridge between RJ45 (Ethernet) and RS485 (Modbus)
• Perennial battery-powered astronomical clock/calendar and non-volatile memory
• Remote firmware update capability
• Graphic LCD display
• 2 digital inputs (DI) and 2 digital outputs (DO) with separate common
• 1 calibration LED
• ExpBus for external I/O and environmental sensors
• NFC-equipped
• Panel size: 96×96 mm
• Power supply: 85 ÷ 265 Vac
• Complies with EN 50470-1 and EN 50470-3

Upgrades included

• 2 × PFSU940-01 Log 8
• 1 × PFSU940-25 Open Log
• PFSU940-05 Web
• PFSU940-30 Charts

Technical specifications

• Model: KILO F NET 96
• Product code: PFNK9-FQ5D9-A21
• Category: Power Quality Energy Analyzer & Web Data Manager
• Standards: EN 50160, EN 61000-4-30, EN 50470-1, EN 50470-3
• Accuracy: Class 0.5S
• Harmonics: single harmonics up to 51st order
• Communications: RJ45 (Ethernet) and RS485 (Modbus) with network bridge
• Inputs/Outputs: 2 DI, 2 DO (separate common)
• Extras: NFC, ExpBus for external I/O and sensors, calibration LED
• Clock/Memory: battery-powered astronomical clock/calendar and non-volatile memory
• Firmware: supports remote firmware update
• Compatible CTs: FCTS series flexible split-core CTs (sold separately)
• Panel size: 96×96 mm
• Power supply: 85 ÷ 265 Vac
