Monitoring analyzer PFNK9-1Q5D9-121 KILO NET 96 PQ WEB LOG 16

for electrical networksAC energy networkindustrial

Product overview

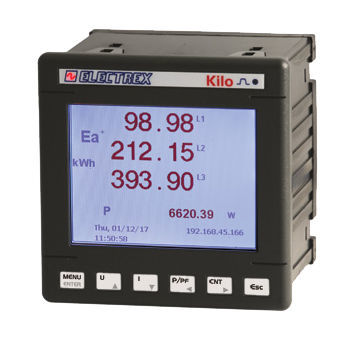

Power Quality Energy Analyzer & Web Data Manager. Power quality analysis according to EN 50160 and EN 61000-4-30. Network bridge between RJ45 and RS485 ports for Modbus communication with Electrex instruments in the subnet. Includes the following upgrades: 2 × PFSU940-01 Log 8, 1 × PFSU940-25 Open Log, PFSU940-05 Web. Accuracy class 0.5S and single harmonics up to the 51st order. Perennial battery-powered astronomical clock/calendar and non-volatile memory. Remote firmware update supported. Graphic LCD display. 2 digital inputs and 2 digital outputs with separate common. 1 calibration LED. ExpBus for external devices (inputs/outputs, environmental sensors). NFC equipped. Size 96×96 mm for panel mounting. Power supply 85 ÷ 265 Vac. Complies with EN 50470-1 and EN 50470-3.

Note
Kilo series devices may also be required in other hardware configurations. To build the code with different versions, refer to the code creation table or to the product datasheet.

Compatible current transformers

• • Split series current transformers
  • Mini series split current transformers

Table / essential data
Product name: KILO NET 96 PQ WEB LOG 16
Code: PFNK9-1Q5D9-121
Main image: Kilo-96.jpg

Additional information
Kilo family devices may be requested in other hardware configurations. To build the code for different versions, refer to the Code creation table in the product datasheet. Current transformers for Kilo and Kilo F families are listed in the accessories section.

Available documents

• Product datasheet Kilo D6 and 96
• Code creation table for Net families
• Installation instructions Kilo RJ45 96 and Kilo net 96 2DI/2DO 4COMMON

Technical specifications

• Function: Power Quality Energy Analyzer & Web Data Manager
• Power quality analysis standards: EN 50160, EN 61000-4-30
• Network bridge: RJ45 ↔ RS485 for Modbus communication with Electrex instruments
• Upgrades included: 2 × PFSU940-01 Log 8, 1 × PFSU940-25 Open Log, PFSU940-05 Web
• Accuracy class: 0.5S
• Harmonics: single harmonics up to the 51st order
• Clock/calendar: perennial battery-powered astronomical clock/calendar
• Memory: non-volatile memory
• Firmware: remote firmware update supported
• Display: graphic LCD
• Digital I/O: 2 digital inputs, 2 digital outputs with separate common
• Calibration: 1 calibration LED
• Expansion bus: ExpBus for external devices (inputs/outputs, environmental sensors)
• Connectivity: NFC equipped
• Size: 96 × 96 mm (panel mount)
• Power supply: 85 ÷ 265 Vac
• Compliance: EN 50470-1, EN 50470-3
