Monitoring analyzer PFNK6-FQAD9-121 KILO F NET WI-FI EDA D6 PQ WEB LOG

for electrical networksindustrialpower quality

Product description

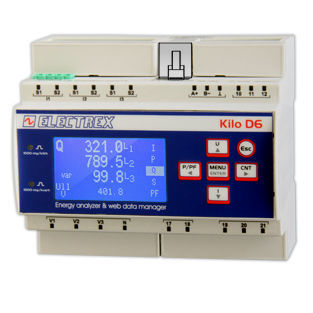

Power Quality Energy Analyzer & Wi‑Fi Web Data Manager PFNK6-FQAD9-121 (KILO F NET, variant D6) with Wi‑Fi communication via external antenna cod. PFC3530 (included). Performs power quality analysis compliant with EN 50160 and EN 61000-4-30. Designed for use with FCTS series flexible split-core current transformers (not included). Acts as a network bridge between RJ45 and/or Wi‑Fi ports and RS485 for Modbus communication with Electrex instruments on the subnet.

Upgrades included

• 2 x PFSU940-01 (Log 8)
• 1 x PFSU940-25 (Open Log)
• PFSU940-05 (Web)

Main features

• Accuracy class: 0.5S
• Harmonic analysis: single harmonics up to the 51st order
• Perennial battery-powered astronomical clock/calendar and non-volatile memory
• Remote firmware update supported
• Graphic LCD display
• 2 digital inputs and 2 digital outputs with separate common
• 2 calibration LEDs
• ExpBus for external devices (I/O and environmental sensors)
• NFC equipped
• DIN-rail mounting, size 6 modules
• Power supply: 85 ÷ 265 Vac
• Compliance: EN 50470-1 and EN 50470-3

Note
The device functions as a Web Data Manager with logging and web-based data handling. For current measurement use the FCTS series flexible split-core CTs (not included). The Wi‑Fi kit includes external antenna cod. PFC3530. Other hardware configurations are available—refer to the product datasheet or the code creation table to build different versions.

Technical specifications

• Product code: PFNK6-FQAD9-121
• Product family: Kilo series
• Model variant: D6 (KILO D6)
• Function: Power Quality Energy Analyzer & Web Data Manager
• Communication: RJ45 and Wi‑Fi (external antenna cod. PFC3530 included)
• Network bridge: between RJ45/Wi‑Fi and RS485 (Modbus)
• Included upgrades: PFSU940-01 (x2), PFSU940-25 (x1), PFSU940-05
• Standards: EN 50160, EN 61000-4-30
• Accuracy: Class 0.5S
• Harmonics: up to 51st order
• Clock/memory: Astronomical battery-backed clock/calendar and non-volatile memory
• Display: Graphic LCD
• Digital I/O: 2 digital inputs, 2 digital outputs with separate common
• Indicators: 2 calibration LEDs
• Expansion: ExpBus for external I/O and environmental sensors
• NFC: Equipped
• Mounting: DIN-rail, 6 modules
• Power supply: 85 ÷ 265 Vac
• Compliance: EN 50470-1 and EN 50470-3
• Compatible CTs: FCTS series flexible split-core CTs (not included)
