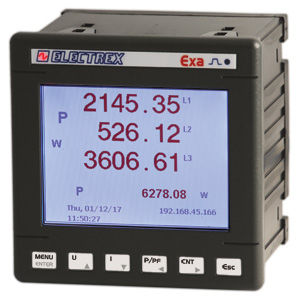

Monitoring analyzer PFNE9-1H509-110 EXA NET 96 Hfor electrical networksfor networkspower quality
Add to favorites
Compare this product
Characteristics
- Application domain
- monitoring, for electrical networks, for networks
- Measured value
- power quality, power, voltage, energy
- Other characteristics
- RS485, with data logger, data acquisition, battery-powered, graphic, DIN 96x96
Description
Overview
Energy analyzer and web data manager with accuracy class 0.5S and single-harmonic analysis up to the 51st order. Acts as a network bridge between RJ45 and RS485 ports for Modbus communication with other Electrex devices and provides integrated data logging capabilities.
Included upgrades
Main features
Compliance
Complies with EN 50470-1 and EN 50470-3.
Technical specifications
Energy analyzer and web data manager with accuracy class 0.5S and single-harmonic analysis up to the 51st order. Acts as a network bridge between RJ45 and RS485 ports for Modbus communication with other Electrex devices and provides integrated data logging capabilities.
Included upgrades
- 1× PFSU940-01 Log 8
- 1× PFSU940-05 Web
Main features
- Perpetual battery-powered clock and non-volatile memory
- Graphic LCD display
- 1 calibration LED
- ExpBus for external I/O and environmental sensors
- NFC equipped
- Remote firmware update
Compliance
Complies with EN 50470-1 and EN 50470-3.
Technical specifications
- Model: EXA NET 96 H
- Code: PFNE9-1H509-110
- Accuracy class: 0.5S
- Harmonics: single harmonics up to the 51st order
- Network interfaces: RJ45 (Ethernet) and RS485 (Modbus)
- Network functionality: network bridge between RJ45 and RS485
- Logging: integrated logging (Log 8 option included)
- Clock: perpetual battery-powered
- Memory: non-volatile memory
- Display: graphic LCD
- Indicators: 1 calibration LED
- Expansion: ExpBus for external I/O and sensors
- Connectivity: NFC
- Panel size: 96×96 mm
- Power supply: 85÷265 Vac
- Standards: EN 50470-1, EN 50470-3
