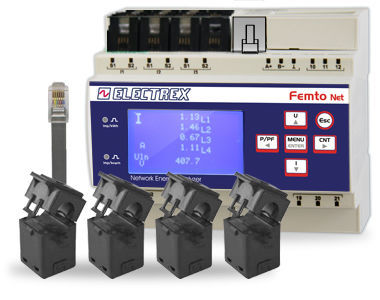

Monitoring analyzer PFN66-H0508-110 FEMTO 4HALL NET D6 DC WEB LOG 8
for networksindustrialpower

Monitoring analyzer - PFN66-H0508-110 FEMTO 4HALL NET D6 DC WEB LOG 8 - ELECTREX - for networks / industrial / power
Monitoring analyzer - PFN66-H0508-110 FEMTO 4HALL NET D6 DC WEB LOG 8 - ELECTREX - for networks / industrial / power
Add to favorites
Compare this product
Go to the ELECTREX website for more information

Characteristics

Application domain
monitoring, industrial, for networks
Measured value
power, voltage, energy
Configuration
DIN rail
Mode of use
automated
Other characteristics
RS485, with data logger, data acquisition, battery-powered, graphic, four-channel

Description

Overview
Cod. PFN66-H0508-110. DC Energy Analyzer and Web Data Manager with RJ45 Ethernet port supporting Modbus/TCP. Four DC inputs compatible with split CT / CTS DC Hall sensors (sensors not included). FSTN graphic display for local readings. Measures voltage, current, power, energy, MIN-MAX voltage and MAX current. Internal registers accessible via RJ45 (Modbus/TCP). Acts as network bridge between RJ45 and RS485 for Modbus communication with Electrex devices. Perennial battery-powered astronomical clock/calendar and non-volatile industrial memory.

Included / Upgrades and Connectivity
  • Upgrade Log 8 included for load profile and energy logging
  • Upgrade WEB included for live measurement display on web interface
  • Built-in web server and FTP server
  • Remote firmware update capability
  • NFC connectivity for local data access/configuration

Applications / Features
  • Energy monitoring
  • Energy automation
  • Alarms and notifications
  • Calendars (astronomical clock)
  • Operating time counters

Mounting & Power
DIN-rail mount, 6 modules. Extended-range power supply: 15÷36 Vac / 18÷60 Vdc. Battery-powered clock/calendar; non-volatile industrial memory for data retention.

Technical specifications
  • Model code: PFN66-H0508-110
  • Denomination: FEMTO 4HALL NET D6
  • Monitoring type: DC Energy Analyzer
  • Inputs: 4 DC inputs (suitable for split CT / CTS DC Hall series - not included)
  • Display: FSTN graphic display
  • Measured quantities: voltage, current, power, energy, MIN-MAX voltage, MAX current
  • Communications: RJ45 Ethernet (Modbus/TCP); RS485 via network bridge
  • Logging: Upgrade Log 8 for load profile and energy logging
  • Web features: Upgrade WEB, built-in Web and FTP server, live measurement display
  • Firmware: remote firmware update supported
  • Connectivity: NFC
  • Mounting: DIN-rail, 6 modules
  • Power supply: 15÷36 Vac / 18÷60 Vdc (extended range)
  • Memory & Timekeeping: non-volatile industrial memory; perennial battery-powered astronomical clock/calendar

Catalogs

No catalogs are available for this product.

See all of ELECTREX‘s catalogs
Go to the ELECTREX website for more information
