Electrical network analyzer PFN66-H0508-A10 FEMTO 4HALL NET D6 DC WEB LOG 8 CHARTS

for networksindustrialpower

Product name

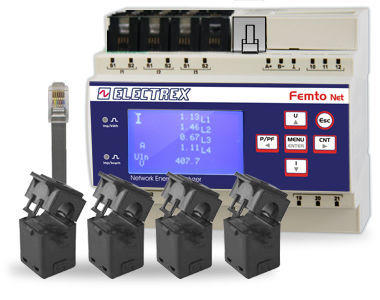

PFN66-H0508-A10 FEMTO 4HALL NET D6 DC WEB LOG 8 CHARTS 18-60VDC ENERGY ANALYZER & WEB DATA MANAGER

Overview
DC energy analyzer and web data manager with RJ45 Ethernet interface for Modbus/TCP. Designed for DC monitoring with 4 inputs compatible with split CT / CTS DC Hall series sensors (sensors not included). FSTN graphic display provides clear local readouts. Measures voltage, current, power, energy, MIN–MAX voltage and MAX current. Built-in bridge between RJ45 and RS485 for Modbus communication with other Electrex devices.

Functionalities

• Energy monitoring
• Load profile logging (includes Upgrade Log 8)
• Web visualization and historical charts (includes Upgrade Web and Charts)
• Alarms and notifications
• Calendars and operating-time counters

Documentation
Data sheet (pdf) and installation instructions (pdf) available for this product.

Technical specifications

• Model: FEMTO 4HALL NET D6
• Product code: PFN66-H0508-A10
• DC monitoring: 4 inputs suitable for split CT / CTS DC Hall series (sensors not included)
• Display: FSTN graphic display
• Measurements: voltage, current, power, energy, MIN–MAX voltage, MAX current
• Communication: RJ45 Ethernet port (Modbus/TCP)
• Network: Bridge between RJ45 and RS485 for Modbus communication with other Electrex devices
• Memory & Clock: Perennial battery-powered astronomical clock/calendar; non-volatile industrial memory
• Logging: Includes Upgrade Log 8 for load profile and energy consumed/produced logging
• Web features: Includes Upgrade Web and Charts for live measurements and historical graphs; integrated Web and FTP server
• Firmware: Remote firmware update supported
• Connectivity: NFC
• Mounting: DIN-rail mount, occupies 6 modules
• Power supply: 15÷36 Vac / 18÷60 Vdc (extended range)
