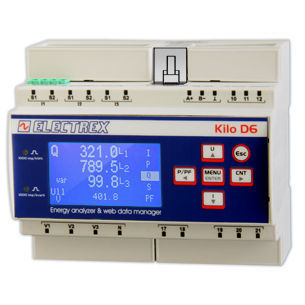

Monitoring analyzer PFNK6-FQ5D9-F21 KILO F NET D6 PQ WEB LOG 16 FULL

for electrical networksindustrialpower quality

Product code
PFNK6-FQ5D9-F21

Overview
Power Quality Energy Analyzer and Web Data Manager for industrial electrical installations. Performs power quality analysis according to EN 50160 and EN 61000-4-30. Accuracy class 0.5S with measurement of single harmonics up to the 51st order. Designed for use with FCTS series flexible split-core current transformers (not included). Acts as a network bridge between RJ45 and RS485 ports for Modbus communication with Electrex instruments in the subnet.

Included upgrades

• PFSU940-01 Log 8
• PFSU940-25 Open Log
• PFSU940-05 Web
• PFSU940-30 Charts
• PFSU940-16 Energy Automation
• PFSU940-15 Email
• PFSU940-20 Calendars

Note
Kilo series devices may be supplied in different hardware configurations. To assemble the correct product code for other versions, refer to the code creation table or the product datasheet.

Compatible current transformers

• FCTS series flexible split-core current transformers

Technical specifications

• Commercial name: KILO F NET D6
• Product code: PFNK6-FQ5D9-F21
• Function: Power quality analyzer and Web Data Manager
• Standards: EN 50160, EN 61000-4-30
• Accuracy class: 0.5S
• Single harmonics: up to the 51st order
• Power supply: 85 ÷ 265Vac
• Display: Graphic LCD
• Real-time clock: Perennial battery-powered astronomical clock/calendar
• Memory: Non-volatile memory
• Firmware: Remote firmware update supported
• Inputs / Outputs: 2 digital inputs and 2 digital outputs with separate common
• Calibration indicators: 2 calibration LEDs
• Communication: Network bridge between RJ45 and RS485 for Modbus communication
• Expansion: ExpBus for external devices (I/O, environmental sensors)
• Connectivity: NFC equipped
• Mechanical: DIN-rail size 6 modules
• Compliance: EN 50470-1, EN 50470-3
• Usage: To be used exclusively with FCTS series flexible split-core CTs (not included)
