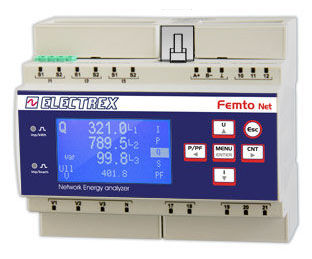

Monitoring analyzer PFN66-EQ7D9-0MM FEMTO ECT RJ45 D6 PQ

for electrical networksAC energy networkpower quality

Overview
Power quality energy analyzer and data manager designed for compliance measurements and monitoring according to EN 50160 and EN 61000-4-30. Accuracy class 0.5S with single harmonic analysis up to the 51st order. Intended for use with external ECT current transformers (not included). Battery-backed real-time clock and non-volatile memory ensure data retention. Remote firmware update capability. DIN rail mounting (6 modules). Power supply 85 ÷ 265 Vac. Complies with EN 50470-1 and EN 50470-3.

Features

• Power quality analysis (EN 50160 and EN 61000-4-30)
• Accuracy class 0.5S
• Single-harmonic measurement up to the 51st order
• Compatible with external ECT current transformers only (not included) — example codes: PFAE000-01, PFAE000-02, PFAE000-03
• Battery-powered perpetual clock
• Non-volatile memory for data retention
• Remote firmware update via communication port
• Communication ports: RJ45 and RS485 (slave)
• Graphic LCD display for local visualization
• 2 digital inputs and 2 digital outputs with separate common
• 2 calibration LEDs
• ExpBus interface for external I/O and environmental sensors
• NFC connectivity for local parameter reading/writing
• DIN rail size: 6 modules
• Power supply: 85 ÷ 265 Vac
• Compliance: EN 50470-1, EN 50470-3

NOTE
Devices in the Femto D6 family may be available in different hardware configurations. Refer to the product Code Creation Table or the product datasheet to build the correct code/version.

Associated current transformers

• Electrex ECT series external current transformers (compatible external CTs)

Technical characteristics

• Function: Power quality energy analyzer & data manager
• Standards: EN 50160, EN 61000-4-30, EN 50470-1, EN 50470-3
• Accuracy class: 0.5S
• Harmonics: single harmonics up to the 51st order
• Current measurement: with external ECT CTs (not included)
• Power supply: 85 ÷ 265 Vac
• Display: Graphic LCD
• Communications: RJ45, RS485 (slave)
• Digital I/O: 2 digital inputs, 2 digital outputs (separate common)
• Additional interfaces: ExpBus for external devices, NFC connectivity
• Indicators: 2 calibration LEDs
• Memory: Non-volatile memory
• Timekeeping: Battery-powered perpetual clock
• Mounting: DIN rail, 6 modules
