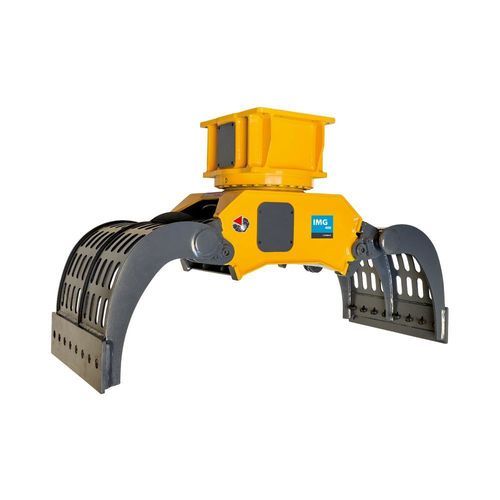

Hydraulic sorting grapple IMG 400
for the recycling industry

Hydraulic sorting grapple - IMG 400 - INDECO - for the recycling industry
Hydraulic sorting grapple - IMG 400 - INDECO - for the recycling industry
Hydraulic sorting grapple - IMG 400 - INDECO - for the recycling industry - image - 2
Add to favorites
Compare this product
Go to the INDECO website for more information

Characteristics

Operation
hydraulic
Applications
for the recycling industry

Description

Product
  • Type: MULTI GRAB
  • Model: IMG 400
  • Series: S Series
  • Primary use: sorting, handling and material selection


Technical specifications
  • Excavator weight (recommended): 3 ÷ 10 ton
  • Maximum working pressure: 300 bar
  • Maximum oil delivery (cylinder): 30 l/min
  • Hydraulic connections for cylinder: 1/2"
  • Maximum rotation pressure: 100 bar
  • Maximum rotation oil flow: 10 l/min
  • Hydraulic connections for rotation: 3/8"
  • Maximum force at blade/teeth: 3000 Kg
  • Compatibility of attachment plate with hammer: HP 900
  • SORTING JAWS: mentioned


Capacities & dimensions
  • Attachment operating weight*: 380 Kg
  • Load capacity: 190 l
  • Jaw width: 900 mm
  • Maximum opening: 1500 mm
  • Depth: 600 mm


Compatibility
  • Compact excavator
  • Backhoe loader


Notes
  • * The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
  • N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.
