Hydraulic grab IMG 300
5-shellrotaryfor excavators

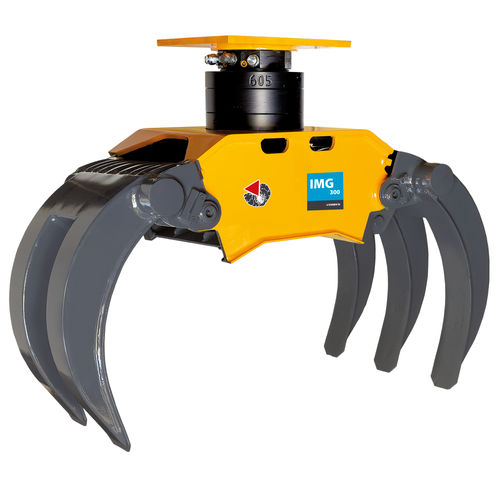

Hydraulic grab - IMG 300 - INDECO - 5-shell / rotary / for excavators
Hydraulic grab - IMG 300 - INDECO - 5-shell / rotary / for excavators
Hydraulic grab - IMG 300 - INDECO - 5-shell / rotary / for excavators - image - 2
Add to favorites
Compare this product
Go to the INDECO website for more information

Characteristics

Operation
hydraulic
Other characteristics
5-shell, rotary, for excavators
Carrier weight

Min.: 2,000 kg
(4,409 lb)

Max.: 6,000 kg
(13,228 lb)

Grapnel weight

320 kg
(705 lb)

Description

Product
  • Product family: MULTI GRABS
  • Model: IMG 300
  • Series: H Series
  • Material handling jaws: 3+2
  • Suitable carriers: Compact excavator; Backhoe loader


Technical specifications
  • Excavator weight: 2 ÷ 6 ton
  • Maximum working pressure: 220 bar
  • Maximum oil delivery: 30 l/min
  • Hydraulic connections for cylinder: 3/8”
  • Maximum rotation pressure: 100 bar
  • Maximum rotation oil flow: 10 l/min
  • Hydraulic connections for rotation: 3/8”
  • Maximum force at blade/teeth: 2100 Kg
  • Compatibility of attachment plate with hammer: HP 400
  • Attachment operating weight*: 320 Kg
  • Maximum opening: 870 mm
  • Depth: 540 mm


Notes
  • The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
  • All illustrations and numerical data in this catalog are purely indicative and subject to change at the manufacturer's discretion and without notice.


Characteristics / Technical specifications
  • Excavator weight: 2 ÷ 6 ton
  • Maximum working pressure: 220 bar
  • Maximum oil delivery: 30 l/min
  • Hydraulic connections for cylinder: 3/8”
  • Maximum rotation pressure: 100 bar
  • Maximum rotation oil flow: 10 l/min
  • Hydraulic connections for rotation: 3/8”
  • Maximum force at blade/teeth: 2100 Kg
  • Compatibility of attachment plate with hammer: HP 400
  • MATERIAL HANDLING JAWS: 3+2
  • Attachment operating weight*: 320 Kg
  • Maximum opening: 870 mm
  • Depth: 540 mm
  • Type of carrier: Compact excavator; Backhoe loader
