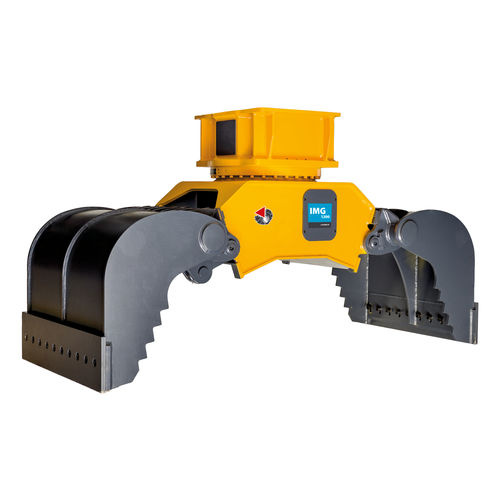

Sorting grab IMG 1200

hydraulicfor the recycling industrywaste collection

Product overview
Multi grab attachment designed for material handling, loading and sorting on wheeled and tracked excavators. Model IMG 1200, L Series, intended for industrial excavation and loading operations.

Key specifications (summary)
Operating excavator weight: 12 ÷ 22 ton
Maximum working pressure: 300 bar
Maximum oil delivery: 70 l/min
Hydraulic connections for cylinder: 3/4”
Maximum rotation pressure: 100 bar
Maximum rotation oil flow: 20 l/min
Hydraulic connections for rotation: 1/2”
Maximum force at blade/teeth: 6000 Kg
Attachment plate compatibility with breaker: HP 2000 - HP 2500
LOADING JAWS: —
Attachment operating weight*: 1250 Kg
Load capacity: 620 l
Maximum opening: 2200 mm
Depth: 900 mm
Applicable carrier types: Wheel excavator; Tracked excavator

Compatibility & applications

• Suitable for bulk material handling, demolition debris, sorting and loading tasks
• Compatible with hydraulic breakers HP 2000 – HP 2500 (depending on plate configuration)
• Mountable on wheeled or tracked excavators within the indicated weight class

Installation & notes
*Attachment operating weight includes mounting bracket according to Indeco construction standards. Variations in weight may occur with different bracket configurations.
N.B. All illustrations and numerical data are indicative and may be modified without notice for product improvement and continuous development.

Technical specifications

• Operating excavator weight: 12 ÷ 22 ton
• Maximum working pressure: 300 bar
• Maximum oil delivery: 70 l/min
• Hydraulic connections for cylinder: 3/4”
• Maximum rotation pressure: 100 bar
• Maximum rotation oil flow: 20 l/min
• Hydraulic connections for rotation: 1/2”
• Maximum force at blade/teeth: 6000 Kg
• Attachment plate compatibility with breaker: HP 2000 - HP 2500
• Attachment operating weight*: 1250 Kg
• Load capacity: 620 l
• Maximum opening: 2200 mm
• Depth: 900 mm
• Applicable carrier types: Wheel excavator; Tracked excavator
