Demolition load lifting grab IMG 2800sortinghydraulicfor excavators
Add to favorites
Compare this product
Characteristics
- Type
- demolition, sorting
- Operation
- hydraulic
- Other characteristics
- for excavators, rotary
- Carrier weight
Min.: 26,000 kg
(57,320 lb)Max.: 50,000 kg
(110,231 lb)- Volume
1.7 m³
(60 ft³)- Grapnel weight
2,930 kg
(6,460 lb)
Description
Product

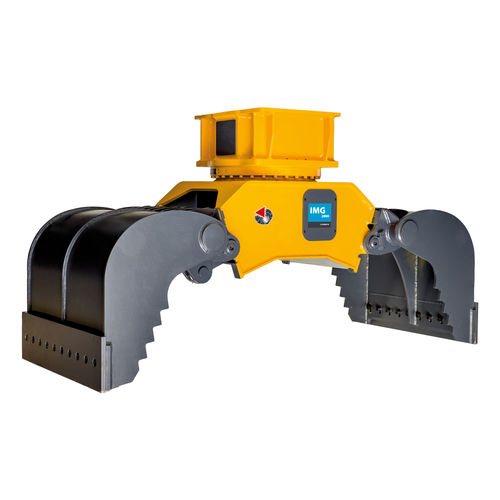

The IMG 2800 multi-grab excavator attachment (L Series) for tracked hydraulic excavators. Designed for loading, sorting and demolition support on excavators in the 26 ÷ 50 ton class.
Technical specifications (summary)
Excavator weight: 26 ÷ 50 ton
Maximum working pressure: 350 bar
Maximum oil delivery: 160 l/min
Hydraulic connections for cylinder: 3/4"
Maximum rotation pressure: 110 bar
Maximum rotation oil flow: 30 l/min
Hydraulic connections for rotation: 1/2"
Maximum force at blade/teeth: 12000 Kg
Compatibility of attachment plate with hammer: HP 3000 ÷ HP 4000
LOADING JAWS: —
Attachment operating weight*: 2930 Kg
Load capacity: 1700 l
Maximum opening: 3000 mm
Depth: 1200 mm
Type of carrier: Tracked excavator
Compatibility & applications
Suitable for 26 ÷ 50 t tracked excavators. Compatible with Indeco mounting standards and intended for material handling, site clearance and demolition support when used with appropriate breaker models.
Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.
Characteristics / Technical specifications
The IMG 2800 multi-grab excavator attachment (L Series) for tracked hydraulic excavators. Designed for loading, sorting and demolition support on excavators in the 26 ÷ 50 ton class.
Technical specifications (summary)
Excavator weight: 26 ÷ 50 ton
Maximum working pressure: 350 bar
Maximum oil delivery: 160 l/min
Hydraulic connections for cylinder: 3/4"
Maximum rotation pressure: 110 bar
Maximum rotation oil flow: 30 l/min
Hydraulic connections for rotation: 1/2"
Maximum force at blade/teeth: 12000 Kg
Compatibility of attachment plate with hammer: HP 3000 ÷ HP 4000
LOADING JAWS: —
Attachment operating weight*: 2930 Kg
Load capacity: 1700 l
Maximum opening: 3000 mm
Depth: 1200 mm
Type of carrier: Tracked excavator
Compatibility & applications
Suitable for 26 ÷ 50 t tracked excavators. Compatible with Indeco mounting standards and intended for material handling, site clearance and demolition support when used with appropriate breaker models.
Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.
Characteristics / Technical specifications
- Excavator weight: 26 ÷ 50 ton
- Maximum working pressure: 350 bar
- Maximum oil delivery: 160 l/min
- Hydraulic connections for cylinder: 3/4"
- Maximum rotation pressure: 110 bar
- Maximum rotation oil flow: 30 l/min
- Hydraulic connections for rotation: 1/2"
- Maximum force at blade/teeth: 12000 Kg
- Compatibility of attachment plate with hammer: HP 3000 ÷ HP 4000
- Attachment operating weight*: 2930 Kg
- Load capacity: 1700 l
- Maximum opening: 3000 mm
- Depth: 1200 mm
- Type of carrier: Tracked excavator
