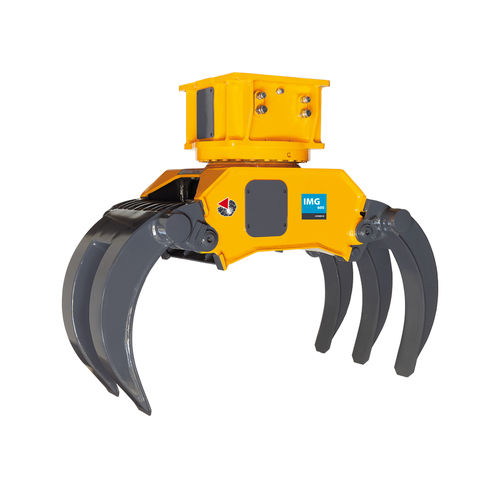

Bunching grab IMG 600

hydraulicrotaryfor excavators

Product

• Product family: MULTI GRABS
• Model: IMG 600
• Series: H Series
• Material handling jaws: 3+2

Technical specifications

• Excavator weight: 5 ÷ 16 ton
• Maximum working pressure: 300 bar
• Maximum oil delivery: 50 l/min
• Hydraulic connections for cylinder: 1/2"
• Maximum rotation pressure: 100 bar
• Maximum rotation oil flow: 10 l/min
• Hydraulic connections for rotation: 3/8"
• Maximum force at blade/teeth: 4000 Kg
• Compatibility of attachment plate with hammer: HP 900
• Attachment operating weight*: 640 Kg
• Maximum opening: 1085 mm
• Depth: 660 mm

Suitable carriers

• Compact excavator
• Backhoe loader
• Wheeled excavator

Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration. N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.

Characteristics / Technical specifications

• Excavator weight: 5 ÷ 16 ton
• Maximum working pressure: 300 bar
• Maximum oil delivery: 50 l/min
• Hydraulic connections for cylinder: 1/2"
• Maximum rotation pressure: 100 bar
• Maximum rotation oil flow: 10 l/min
• Hydraulic connections for rotation: 3/8"
• Maximum force at blade/teeth: 4000 Kg
• Compatibility of attachment plate with hammer: HP 900
• Material handling jaws: 3+2
• Attachment operating weight*: 640 Kg
• Maximum opening: 1085 mm
• Depth: 660 mm
• Suitable carriers: Compact excavator; Backhoe loader; Wheeled excavator
