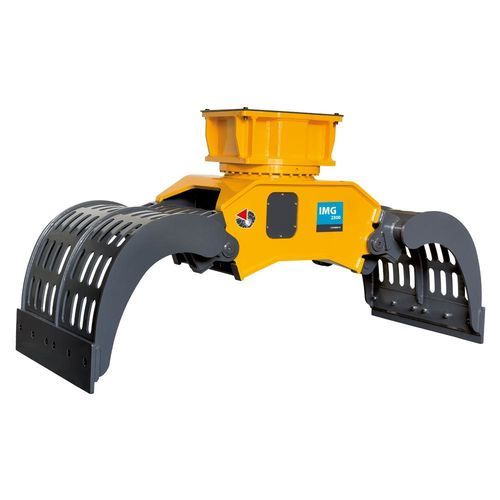

Hydraulic sorting grapple IMG 2300

for the recycling industryconstruction site

Product
Multi-grapple (Multi Grab) IMG 2300 — S series. Hydraulic rotating multi-grapple designed for sorting and handling materials on tracked excavators.

Key specifications

• Excavator weight: 22 ÷ 40 ton
• Maximum working pressure (cylinder): 350 bar
• Maximum oil flow (cylinder): 130 l/min
• Hydraulic connections for cylinder: 3/4”
• Maximum rotation pressure: 110 bar
• Maximum rotation oil flow: 30 l/min
• Hydraulic connections for rotation: 1/2”
• Maximum force at blade/teeth: 10000 Kg
• Compatibility of attachment plate with breaker: HP 3000 ÷ HP 4000
• SORTING JAWS: (not specified)
• Attachment operating weight*: 2180 Kg
• Load capacity: 1350 l
• Jaw width: 1630 mm
• Maximum opening: 2700 mm
• Depth: 1100 mm
• Type of carrier: Tracked excavator

Applications

• Sorting and selection of demolition, recycling and bulk materials
• Material handling and loading operations
• Use with tracked excavators in construction and recycling sites

Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration. N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.
