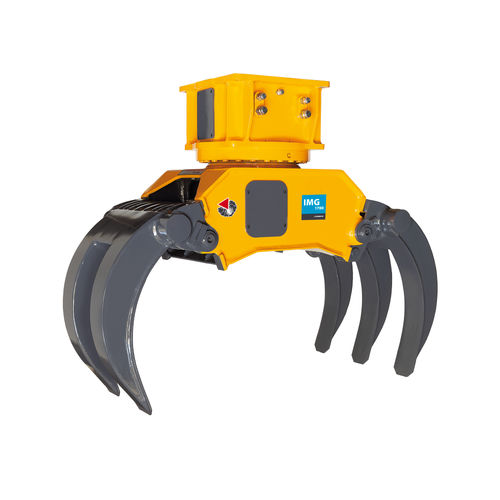

Hydraulic grab IMG 1700

rotaryfor excavators

Product
Multi-grab grapple for excavators.

Model
IMG 1700 — H Series

Technical specifications

• Excavator weight: 17 ÷ 30 t
• Maximum working pressure: 320 bar
• Maximum oil delivery: 80 l/min
• Hydraulic connections for cylinder: 3/4"
• Maximum rotation pressure: 110 bar
• Maximum rotation oil flow: 20 l/min
• Hydraulic connections for rotation: 1/2"
• Maximum force at blade/teeth: 7000 Kg
• Compatibility of attachment plate with hammer: HP 2000 - HP 2500
• MATERIAL HANDLING JAWS: 3+2
• Attachment operating weight*: 1800 Kg
• Maximum opening: 1550 mm
• Depth: 950 mm

Type of carrier

• Wheeled excavator
• Tracked excavator

Notes
* The operating weight of the equipment includes the mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.

Features / technical specifications

• Excavator weight: 17 ÷ 30 t
• Maximum working pressure: 320 bar
• Maximum oil delivery: 80 l/min
• Hydraulic connections for cylinder: 3/4"
• Maximum rotation pressure: 110 bar
• Maximum rotation oil flow: 20 l/min
• Hydraulic connections for rotation: 1/2"
• Maximum force at blade/teeth: 7000 Kg
• Compatibility of attachment plate with hammer: HP 2000 - HP 2500
• MATERIAL HANDLING JAWS: 3+2
• Attachment operating weight*: 1800 Kg
• Maximum opening: 1550 mm
• Depth: 950 mm
• Type of carrier: Wheeled excavator; Tracked excavator
