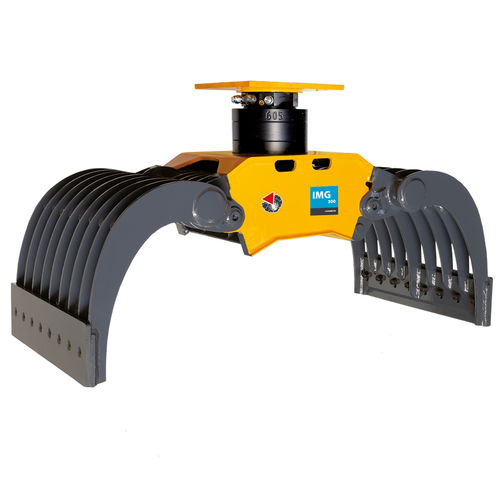

Hydraulic sorting grapple IMG 300

for the recycling industryscrapconstruction site

Product family
MULTI GRABS - D Series

Model
IMG 300

Overview
Demolition sorting jaws designed for handling, demolition and sorting operations on compact carriers. Key characteristics include a compact attachment operating weight and high blade/teeth force for effective demolition performance.

Hydraulic and performance data
Excavator weight: 2 ÷ 6 ton
Maximum working pressure: 220 bar
Maximum oil delivery: 30 l/min
Hydraulic connections for cylinder: 3/8”
Maximum rotation pressure: 100 bar
Maximum rotation oil flow: 10 l/min
Hydraulic connections for rotation: 3/8”

Mechanical / dimensional data
Maximum force at blade/teeth: 2100 Kg
Attachment operating weight*: 300 Kg
Load capacity: 130 l
Maximum opening: 1400 mm
Depth: 550 mm

Type of carrier

• Compact excavator
• Backhoe loader

Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration. All illustrations and numerical data in this catalog are purely indicative and subject to change at the manufacturer's discretion.

Specifications

• Excavator weight: 2 ÷ 6 ton
• Maximum working pressure: 220 bar
• Maximum oil delivery: 30 l/min
• Hydraulic connections for cylinder: 3/8”
• Maximum rotation pressure: 100 bar
• Maximum rotation oil flow: 10 l/min
• Hydraulic connections for rotation: 3/8”
• Maximum force at blade/teeth: 2100 Kg
• Compatibility of attachment plate with hammer: HP 400
• Attachment operating weight*: 300 Kg
• Load capacity: 130 l
• Maximum opening: 1400 mm
• Depth: 550 mm
• Type of carrier: Compact excavator; Backhoe loader
