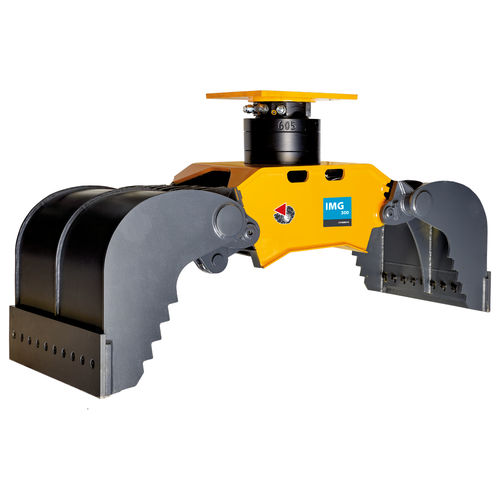

Sorting grab IMG 300

hydraulicrotaryfor excavators

Product
Multi grab
Series: L Series
Model: IMG 300

Applications

• Material handling, sorting and loading
• Suitable for compact excavators and backhoe loaders (2–6 t)

Technical specifications

• Recommended excavator weight: 2 ÷ 6 t
• Maximum working pressure: 220 bar
• Maximum oil flow (cylinder): 30 l/min
• Hydraulic connections (cylinder): 3/8"
• Maximum rotation pressure: 100 bar
• Maximum rotation oil flow: 10 l/min
• Hydraulic connections (rotation): 3/8"
• Maximum force at blade/teeth: 2100 kg
• Attachment plate compatibility (breaker): HP 400
• Attachment operating weight*: 310 kg
• Load capacity: 150 l
• Maximum opening: 1400 mm
• Depth: 550 mm
• Type of carrier: Compact excavator; Backhoe loader

Notes
* The operating weight of the equipment includes the mounting bracket compatible with Indeco construction standards. Differences in weight may be due to a different mounting bracket configuration. All illustrations and numerical data in this catalog are indicative and may be modified at our discretion without notice.
