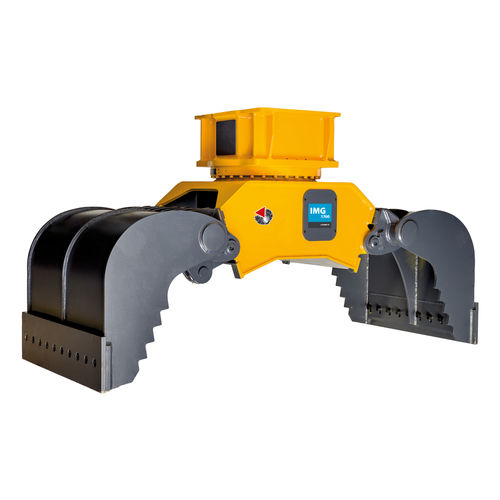

Hydraulic grab IMG 1700rotaryfor excavators
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Other characteristics
- rotary, for excavators
- Carrier weight
Max.: 30,000 kg
(66,139 lb)Min.: 17,000 kg
(37,479 lb)- Volume
0.9 m³
(31.8 ft³)- Grapnel weight
1,780 kg
(3,924 lb)
Description
Product family
Overview
Multi-grab attachment designed for excavators in the 17 ÷ 30 t range. Intended for loading, handling and transport of bulk materials. Mounting plate compatible with selected breakers as indicated in technical data. LOADING JAWS: not specified.
Technical specifications
Notes
* The operating weight of the equipment includes the mounting bracket compliant with Indeco construction standards. Illustrations and numerical data are indicative and may be modified without notice.
- MULTI GRABS
- L Series
Overview
Multi-grab attachment designed for excavators in the 17 ÷ 30 t range. Intended for loading, handling and transport of bulk materials. Mounting plate compatible with selected breakers as indicated in technical data. LOADING JAWS: not specified.
Technical specifications
- Excavator weight: 17 ÷ 30 ton
- Maximum working pressure (cylinder): 320 bar
- Maximum oil delivery (cylinder): 80 l/min
- Hydraulic connections for cylinder: 3/4”
- Maximum rotation pressure: 110 bar
- Maximum rotation oil flow: 20 l/min
- Hydraulic connections for rotation: 1/2”
- Maximum force at blade/teeth: 7000 Kg
- Compatibility of attachment plate with hammer: HP 2000 - HP 2500
- Attachment operating weight*: 1780 Kg
- Load capacity: 900 l
- Maximum opening: 2500 mm
- Depth: 1000 mm
- Type of carrier:
- Wheeled excavator
- Tracked excavator
Notes
* The operating weight of the equipment includes the mounting bracket compliant with Indeco construction standards. Illustrations and numerical data are indicative and may be modified without notice.
