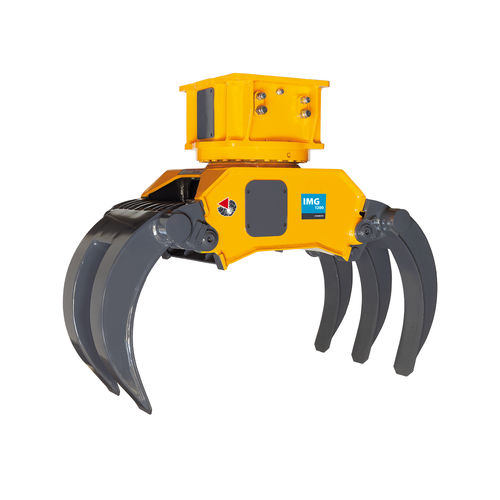

Sorting grab IMG 1200

hydraulicfor the recycling industry5-shell

Product
Material handling multi-grab
Model: IMG 1200
Series: H
Jaw configuration: 3+2

Overview / Application
Attachment designed for sorting, loading and handling bulk and irregular materials on construction and demolition sites. Suitable for recycling, material handling and selective demolition tasks where controlled gripping and selective release are required.

Technical specifications

• Excavator weight: 12 ÷ 22 ton
• Maximum working pressure (cylinder): 300 bar
• Maximum oil delivery (cylinder): 70 l/min
• Hydraulic connections for cylinder: 3/4”
• Maximum rotation pressure: 100 bar
• Maximum rotation oil flow: 20 l/min
• Hydraulic connections for rotation: 1/2”
• Maximum force at blade/teeth: 6000 Kg
• Compatibility of attachment plate with hammer: HP 2000 - HP 2500
• Jaw configuration: MATERIAL HANDLING JAWS 3+2
• Attachment operating weight*: 1280 Kg
• Maximum opening: 1360 mm
• Depth: 830 mm

Machine types

• Wheeled excavator
• Tracked excavator

Compatibility & notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We reserve the right to modify them for product improvement and development.
