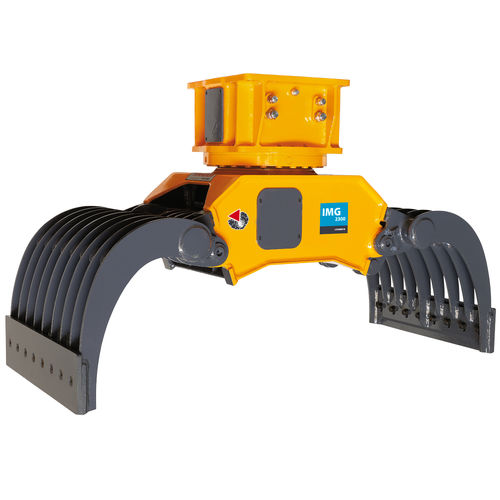

Hydraulic sorting grapple IMG 2300construction site
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Applications
- construction site
Description
Product overview
TECHNICAL SPECIFICATIONS
Excavator weight: 22 ÷ 40 t
Maximum working pressure: 350 bar
Maximum oil delivery: 130 l/min
Hydraulic connections for cylinder: 3/4”
Maximum rotation pressure: 110 bar
Maximum rotation oil flow: 30 l/min
Hydraulic connections for rotation: 1/2”
Maximum force at blade/teeth: 10000 Kg
Compatibility of attachment plate with hammer: HP 3000 ÷ HP 4000
Attachment operating weight*: 2300 Kg
Load capacity: 1350 l
Maximum opening: 2700 mm
Depth: 1100 mm
Type of carrier: Tracked excavator
Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.
Characteristics / technical specifications
- Product family: MULTI GRABS
- Model: IMG 2300
- Series: D Series
- Product typology: DEMOLITION SORTING JAWS (multi grabs)
TECHNICAL SPECIFICATIONS
Excavator weight: 22 ÷ 40 t
Maximum working pressure: 350 bar
Maximum oil delivery: 130 l/min
Hydraulic connections for cylinder: 3/4”
Maximum rotation pressure: 110 bar
Maximum rotation oil flow: 30 l/min
Hydraulic connections for rotation: 1/2”
Maximum force at blade/teeth: 10000 Kg
Compatibility of attachment plate with hammer: HP 3000 ÷ HP 4000
Attachment operating weight*: 2300 Kg
Load capacity: 1350 l
Maximum opening: 2700 mm
Depth: 1100 mm
Type of carrier: Tracked excavator
Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.
Characteristics / technical specifications
- Excavator weight: 22 ÷ 40 t
- Maximum working pressure: 350 bar
- Maximum oil delivery: 130 l/min
- Hydraulic connections for cylinder: 3/4”
- Maximum rotation pressure: 110 bar
- Maximum rotation oil flow: 30 l/min
- Hydraulic connections for rotation: 1/2”
- Maximum force at blade/teeth: 10000 Kg
- Compatibility of attachment plate with hammer: HP 3000 ÷ HP 4000
- Attachment operating weight*: 2300 Kg
- Load capacity: 1350 l
- Maximum opening: 2700 mm
- Depth: 1100 mm
- Type of carrier: Tracked excavator
