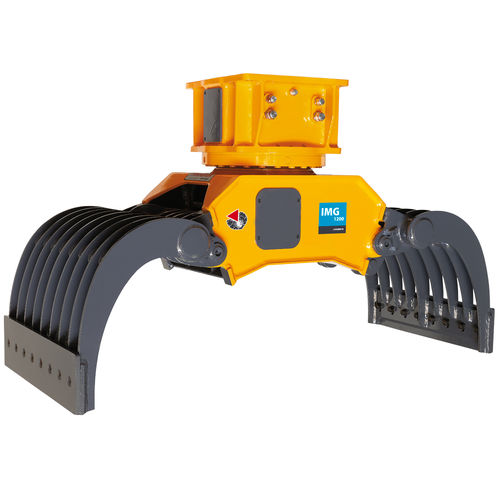

Hydraulic sorting grapple IMG 1200

for the recycling industryconstruction sitescrap

Overview
Hydraulic multi grab for demolition and sorting. Model IMG 1200, D Series, designed for handling and demolition tasks on mid-size excavators.

Key features

• Operating weight: 1200 Kg
• Load capacity: 620 L
• Maximum opening: 2200 mm
• Depth: 900 mm
• Maximum force at blade/teeth: 6000 Kg

Technical specifications

• Recommended excavator weight: 12 ÷ 22 ton
• Maximum working pressure (cylinder): 300 bar
• Maximum oil delivery (cylinder): 70 l/min
• Hydraulic connections for cylinder: 3/4”
• Maximum rotation pressure: 100 bar
• Maximum rotation oil flow: 20 l/min
• Hydraulic connections for rotation: 1/2”

Compatibility & carrier types

• Attachment plate compatibility with breaker: HP 2000 - HP 2500
• Type of carrier: Wheeled excavator; Tracked excavator

Notes

• * The operating weight includes the mounting bracket according to Indeco construction standards; actual weight may vary with different bracket configurations.
• All illustrations and numerical data are indicative and may be modified without notice for product improvement.
