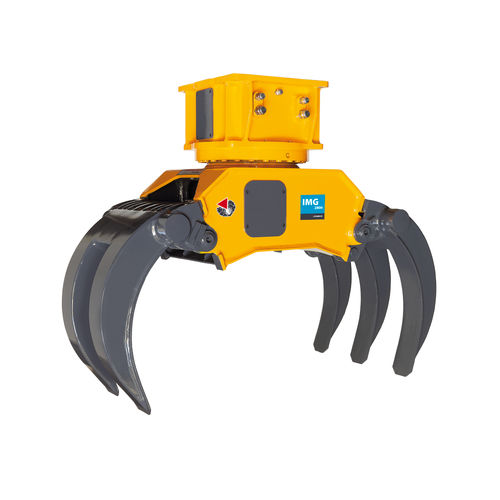

Demolition load lifting grab IMG 2800

sortinghydraulicfor the recycling industry

Product
Multi grab grapple designed for material handling and demolition. Model IMG 2800 — H Series. 3+2 material handling jaws; maximum opening 1840 mm; attachment operating weight 2990 Kg; compatible with tracked excavators 26 ÷ 50 ton.

Technical specifications

• Excavator weight: 26 ÷ 50 ton
• Maximum working pressure: 350 bar
• Maximum oil delivery: 160 l/min
• Hydraulic connections for cylinder: 3/4”
• Maximum rotation pressure: 110 bar
• Maximum rotation oil flow: 30 l/min
• Hydraulic connections for rotation: 1/2”
• Maximum force at blade/teeth: 12000 Kg
• Compatibility of attachment plate with hammer: HP 3000 ÷ HP 4000
• MATERIAL HANDLING JAWS: 3+2
• Attachment operating weight*: 2990 Kg
• Maximum opening: 1840 mm
• Depth: 1130 mm
• Type of carrier: Tracked excavator

Compatibility & mounting
Attachment supplied with mounting bracket compatible with Indeco construction standards; different mounting configurations may affect operating weight. Plate compatible with hammers HP 3000 ÷ HP 4000.

Applications

• Material handling, sorting and recycling
• Demolition and site clearance
• Scrap and waste processing

Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration. N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.
