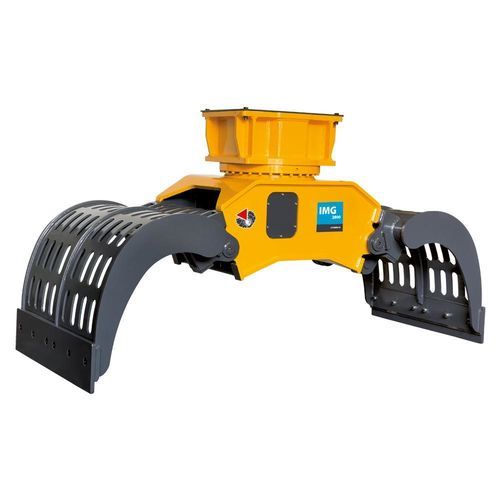

Hydraulic sorting grapple IMG 2800

Product
Multi-grab sorting grapple for excavators
Model: IMG 2800 — S Series

Technical summary
Compatible excavator weight: 26 ÷ 50 t
Maximum working pressure: 350 bar
Maximum oil flow (cylinder): 160 l/min
Hydraulic connections (cylinder): 3/4"
Maximum rotation pressure: 110 bar
Maximum rotation oil flow: 30 l/min
Hydraulic connections (rotation): 1/2"
Maximum force at blade/teeth: 12000 Kg
Attachment plate compatibility with breaker: HP 3000 ÷ HP 4000
Sorting jaws: available / optional
Attachment operating weight*: 2650 Kg
Load capacity: 1700 l
Jaw width: 1750 mm
Maximum opening: 3000 mm
Depth: 1200 mm
Type of carrier: Tracked excavator

Notes
*The operating weight of the equipment includes the mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration. All illustrations and numerical data in this catalog are indicative and subject to change without notice as part of product improvement and development.

Characteristics / technical specifications

• Compatible excavator weight: 26 ÷ 50 t
• Maximum working pressure: 350 bar
• Maximum oil flow (cylinder): 160 l/min
• Hydraulic connections (cylinder): 3/4"
• Maximum rotation pressure: 110 bar
• Maximum rotation oil flow: 30 l/min
• Hydraulic connections (rotation): 1/2"
• Maximum force at blade/teeth: 12000 Kg
• Attachment plate compatibility with breaker: HP 3000 ÷ HP 4000
• Sorting jaws: available / optional
• Attachment operating weight*: 2650 Kg
• Load capacity: 1700 l
• Jaw width: 1750 mm
• Maximum opening: 3000 mm
• Depth: 1200 mm
• Type of carrier: Tracked excavator
