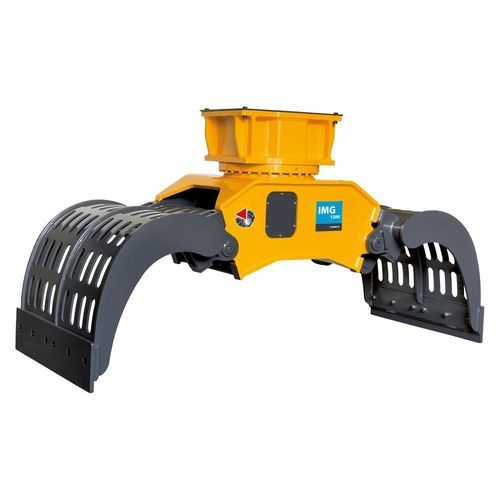

Hydraulic sorting grapple IMG 1200

construction sitewaste collectionfor the recycling industry

Product overview
Sorting Multi Grab grapple IMG 1200, S Series. Hydraulic multi-grab attachment with rotation for sorting, material handling and selective demolition on 12 ÷ 22 ton excavators.

Applications

• Sorting and selection in recycling and recovery yards
• Bulk material handling and loading
• Selective demolition and dismantling
• Site clearance and waste management

Technical specifications

• Operating excavator weight: 12 ÷ 22 ton
• Maximum working pressure: 300 bar
• Maximum oil delivery: 70 l/min
• Hydraulic connections for cylinder: 3/4”
• Maximum rotation pressure: 100 bar
• Maximum rotation oil flow: 20 l/min
• Hydraulic connections for rotation: 1/2”
• Maximum force at blade/teeth: 6000 Kg
• Attachment plate / breaker compatibility: HP 2000 - HP 2500
• Attachment operating weight*: 1140 Kg
• Load capacity: 620 l
• Jaw width: 1300 mm
• Maximum opening: 2200 mm
• Depth: 900 mm
• Type of carrier: Wheeled excavator; Tracked excavator

Compatibility & mounting
Mounting plate compatible with Indeco construction standards. Delivery includes mounting bracket according to requested configuration; final mounting interface can be adapted to carrier type.

Notes
* The operating weight includes the mounting bracket compatible with Indeco standards. Illustrations and numerical data are indicative and may be changed without notice for product improvement.
