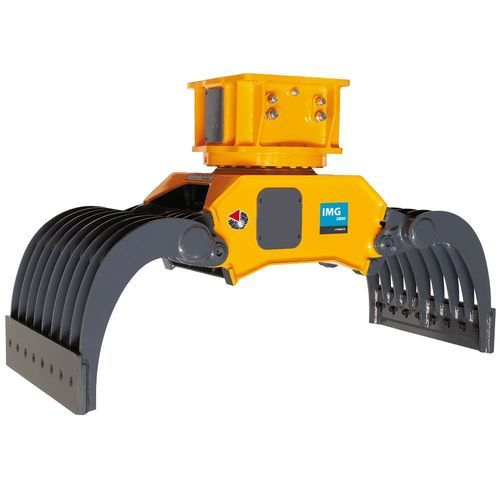

Hydraulic sorting grapple IMG 2800

scrapfor the recycling industryconstruction site

Product
MULTI GRABS — D Series — IMG 2800. Demolition and sorting multi-grab attachment engineered for tracked excavators to handle demolition debris and sorting operations.

Technical specifications

• Recommended excavator weight: 26 ÷ 50 ton
• Maximum working pressure (cylinder): 350 bar
• Maximum oil delivery (cylinder): 160 l/min
• Hydraulic connections for cylinder: 3/4”
• Maximum rotation pressure: 110 bar
• Maximum rotation oil flow: 30 l/min
• Hydraulic connections for rotation: 1/2”
• Maximum force at blade/teeth: 12000 Kg
• Compatibility of attachment plate with hammer: HP 3000 ÷ HP 4000

Attachment data

• Attachment operating weight*: 2800 Kg
• Load capacity: 1700 l
• Maximum opening: 3000 mm
• Depth: 1200 mm
• Type of carrier: Tracked excavator

Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration. All illustrations and numerical data in this catalog are purely indicative and subject to change at the manufacturer's discretion and without notice.

Characteristics / technical specifications

• Excavator weight: 26 ÷ 50 ton
• Maximum working pressure: 350 bar
• Maximum oil delivery: 160 l/min
• Hydraulic connections for cylinder: 3/4”
• Maximum rotation pressure: 110 bar
• Maximum rotation oil flow: 30 l/min
• Hydraulic connections for rotation: 1/2”
• Maximum force at blade/teeth: 12000 Kg
• Compatibility of attachment plate with hammer: HP 3000 ÷ HP 4000
• Attachment operating weight*: 2800 Kg
• Load capacity: 1700 l
• Maximum opening: 3000 mm
• Depth: 1200 mm
• Type of carrier: Tracked excavator
