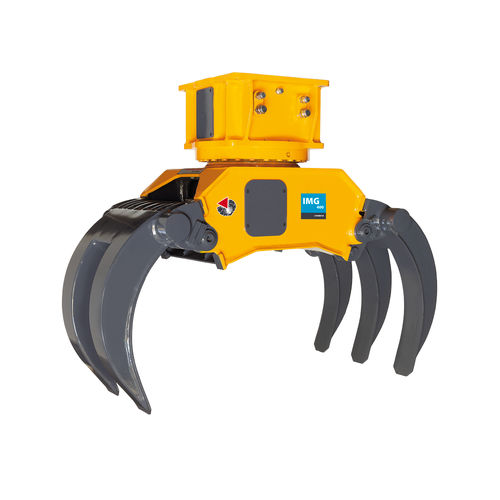

Sorting grab IMG 400hydraulicfor concreterotary
Add to favorites
Compare this product
Characteristics
- Type
- sorting
- Operation
- hydraulic
- Applications
- for concrete
- Other characteristics
- rotary, for excavators
- Carrier weight
Min.: 3,000 kg
(6,614 lb)Max.: 10,000 kg
(22,046 lb)- Grapnel weight
425 kg
(937 lb)
Description
Product family
Multi grab for material handling.
Product name
IMG 400 — H Series.
Overview
Multi grab equipped with 3+2 material-handling jaws for picking, sorting and loading demolition or bulk materials. Designed for mounting on compact excavators and backhoe loaders. Attachment plate compatible with hydraulic hammer HP 900. Intended for machines in the 3 ÷ 10 t class.
Technical specifications
Notes
* The operating weight of the equipment includes the mounting bracket compatible with Indeco construction standards. Weight may vary with different bracket configurations. All illustrations and numerical data are indicative and subject to change without notice.
Multi grab for material handling.
Product name
IMG 400 — H Series.
Overview
Multi grab equipped with 3+2 material-handling jaws for picking, sorting and loading demolition or bulk materials. Designed for mounting on compact excavators and backhoe loaders. Attachment plate compatible with hydraulic hammer HP 900. Intended for machines in the 3 ÷ 10 t class.
Technical specifications
- Excavator weight: 3 ÷ 10 t
- Maximum working pressure: 300 bar
- Maximum oil delivery (cylinder): 30 l/min
- Hydraulic connections for cylinder: 1/2”
- Maximum rotation pressure: 100 bar
- Maximum rotation oil flow: 10 l/min
- Hydraulic connections for rotation: 3/8”
- Maximum force at blade/teeth: 3000 Kg
- Attachment plate compatibility with hammer: HP 900
- MATERIAL HANDLING JAWS: 3+2
- Attachment operating weight*: 425 Kg
- Maximum opening: 930 mm
- Depth: 570 mm
- Type of carrier: Compact excavator; Backhoe loader
Notes
* The operating weight of the equipment includes the mounting bracket compatible with Indeco construction standards. Weight may vary with different bracket configurations. All illustrations and numerical data are indicative and subject to change without notice.
