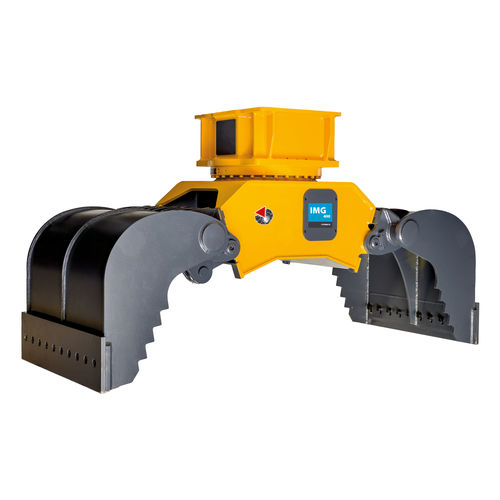

Hydraulic grab IMG 400

for excavators

Product
The IMG 400 is a multi grab (L Series) designed for handling, loading and material moving tasks on compact excavators and backhoe loaders.

Applications

• Loading and unloading loose materials
• Site clearance and earthmoving
• Landscaping and material handling on confined sites

Technical specifications

• Recommended carrier weight: 3 ÷ 10 ton
• Maximum working pressure (cylinder): 300 bar
• Maximum oil delivery (cylinder): 30 l/min
• Hydraulic connections for cylinder: 1/2”
• Maximum rotation pressure: 100 bar
• Maximum rotation oil flow: 10 l/min
• Hydraulic connections for rotation: 3/8”
• Maximum force at blade/teeth: 3000 Kg
• Compatibility of attachment plate with hammer: HP 900
• Attachment operating weight*: 415 Kg
• Load capacity: 190 l
• Maximum opening: 1500 mm
• Depth: 600 mm
• Type of carrier: Compact excavator; Backhoe loader

Compatibility and mounting
The unit is supplied with a mounting bracket compatible with Indeco construction standards. Check carrier hydraulic flow and pressure before installation to ensure correct operation.

Notes
* The operating weight includes the mounting bracket compatible with Indeco standards. Illustrations and numerical data are indicative and subject to change without notice. Verify specifications with the manufacturer before purchase.
