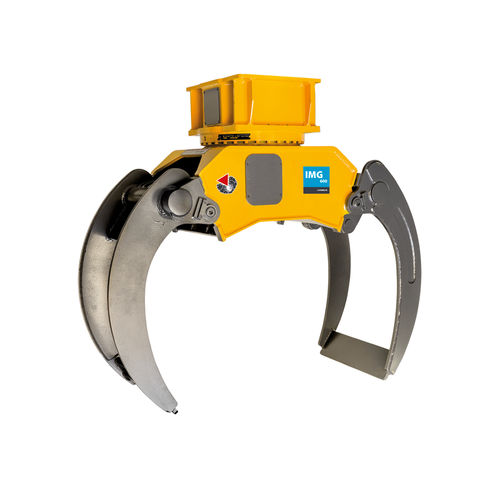

Bunching grab IMG 600

hydraulicwoodfor concrete

Product
Multi grab grapple for excavators. Model IMG 600 from the T Series, designed for material handling, demolition and forestry operations. Suitable for a range of hydraulic and rotation configurations.

Model / Series
IMG 600 — T Series. Compatibility with breaker attachment plate: HP 900. Timber jaws: not specified.

Technical specifications

• Excavator weight: 5 ÷ 16 t
• Maximum working pressure (cylinder): 300 bar
• Maximum oil flow (cylinder): 50 l/min
• Hydraulic connections (cylinder): 1/2”
• Maximum rotation pressure: 100 bar
• Maximum rotation oil flow: 10 l/min
• Hydraulic connections (rotation): 3/8”
• Maximum force at blade/teeth: 4000 kg
• Attachment operating weight*: 630 kg
• Maximum opening: 1085 mm
• Depth: 660 mm

Compatible carriers

• Compact excavator
• Backhoe loader
• Wheeled excavator

Notes
*The operating weight includes the mounting bracket compatible with Indeco construction standards. Illustrations and numerical data in this catalog are indicative and may be modified without notice. We reserve the right to modify product specifications for improvement and development.
