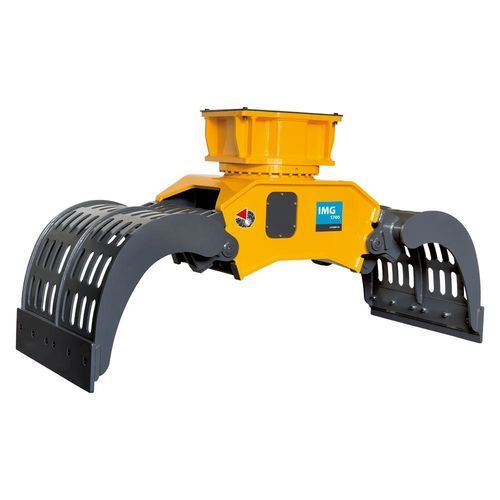

Hydraulic sorting grapple IMG 1700

Product
Multi Grab attachment IMG 1700, S Series, designed for sorting, loading and material handling on excavators.

Series
S Series

Technical specifications

• Excavator weight: 17 ÷ 30 ton
• Maximum working pressure: 320 bar
• Maximum oil delivery: 80 l/min
• Hydraulic connections for cylinder: 3/4"
• Maximum rotation pressure: 110 bar
• Maximum rotation oil flow: 20 l/min
• Hydraulic connections for rotation: 1/2"
• Maximum force at blade/teeth: 7000 Kg
• Compatibility of attachment plate with hammer: HP 2000 - HP 2500

Sorting jaws

• Attachment operating weight*: 1610 Kg
• Load capacity: 900 l
• Jaw width: 1470 mm
• Maximum opening: 2500 mm
• Depth: 1000 mm

Type of carrier

• Wheeled excavator
• Tracked excavator

Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration. N.B. All illustrations and numerical data are indicative and subject to change without notice; we reserve the right to modify them to improve and develop the product.

Characteristics / Technical specifications

• Excavator weight: 17 ÷ 30 ton
• Maximum working pressure: 320 bar
• Maximum oil delivery: 80 l/min
• Hydraulic connections for cylinder: 3/4"
• Maximum rotation pressure: 110 bar
• Maximum rotation oil flow: 20 l/min
• Hydraulic connections for rotation: 1/2"
• Maximum force at blade/teeth: 7000 Kg
• Compatibility of attachment plate with hammer: HP 2000 - HP 2500
• Attachment operating weight*: 1610 Kg
• Load capacity: 900 l
• Jaw width: 1470 mm
• Maximum opening: 2500 mm
• Depth: 1000 mm
• Type of carrier: Wheeled excavator; Tracked excavator
