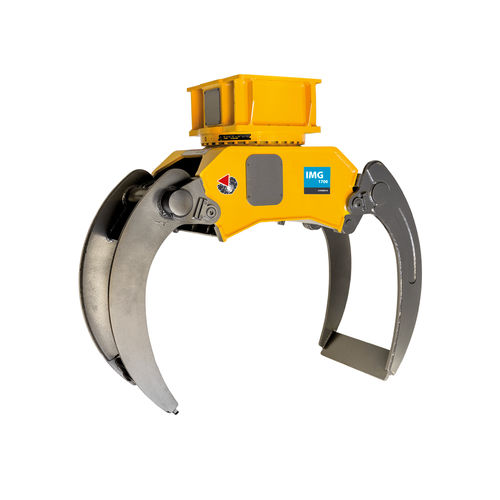

Excavator handling and tamping grapple IMG 1700
Add to favorites
Compare this product
Characteristics
- Product applications
- for excavators
Description
Product
Multi-grab excavator attachment IMG 1700 — T Series
Technical specifications
Compatibility & carrier types
Dimensions & weight
Notes
* The operating weight of the attachment includes the mounting bracket compliant with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration. All illustrations and numerical data are indicative and subject to change without notice; specifications may be modified for product improvement.
Multi-grab excavator attachment IMG 1700 — T Series
Technical specifications
- Compatible excavator weight: 17–30 t
- Maximum working pressure (cylinder): 320 bar
- Maximum oil flow (cylinder): 80 l/min
- Hydraulic connections for cylinder: 3/4 in
- Maximum rotation pressure: 110 bar
- Maximum rotation oil flow: 20 l/min
- Hydraulic connections for rotation: 1/2 in
- Maximum force at blade/teeth: 7000 Kg
- Attachment plate compatibility with hammer: HP 2000 - HP 2500
- TIMBER JAWS: not specified
Compatibility & carrier types
- Wheeled excavator
- Tracked excavator
Dimensions & weight
- Attachment operating weight*: 1780 Kg
- Maximum opening: 1550 mm
- Depth: 950 mm
Notes
* The operating weight of the attachment includes the mounting bracket compliant with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration. All illustrations and numerical data are indicative and subject to change without notice; specifications may be modified for product improvement.
