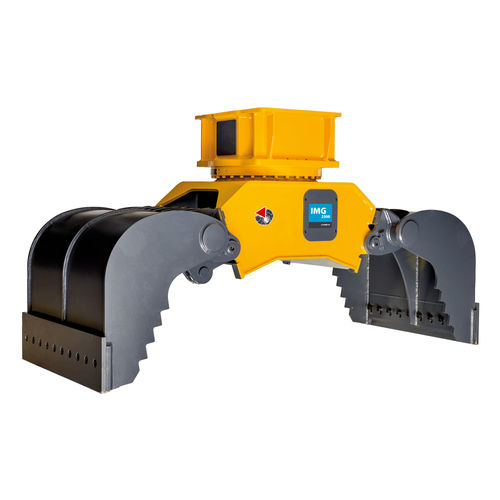

Sorting grab IMG 2300hydraulicrotaryfor excavators
Add to favorites
Compare this product
Characteristics
- Type
- sorting
- Operation
- hydraulic
- Other characteristics
- rotary, for excavators
- Carrier weight
Max.: 40,000 kg
(88,185 lb)Min.: 22,000 kg
(48,502 lb)- Volume
1.4 m³
(47.7 ft³)- Grapnel weight
2,400 kg
(5,291 lb)
Description
Product overview
Multi-grab grapple for handling, loading and material manipulation on tracked excavators. Model IMG 2300, L Series. Designed for wide opening and high load capacity.
Technical specifications
Compatibility & application
Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.
Characteristics / technical specifications
Multi-grab grapple for handling, loading and material manipulation on tracked excavators. Model IMG 2300, L Series. Designed for wide opening and high load capacity.
Technical specifications
- Operating excavator weight: 22 ÷ 40 ton
- Maximum working pressure: 350 bar
- Maximum oil delivery: 130 l/min
- Hydraulic connections for cylinder: 3/4”
- Maximum rotation pressure: 110 bar
- Maximum rotation oil flow: 30 l/min
- Hydraulic connections for rotation: 1/2”
- Maximum force at blade/teeth: 10000 Kg
- Compatibility of attachment plate with breaker: HP 3000 ÷ HP 4000
- LOADING JAWS: (not specified)
- Attachment operating weight*: 2400 Kg
- Load capacity: 1350 l
- Maximum opening: 2700 mm
- Depth: 1100 mm
- Type of carrier: Tracked excavator
Compatibility & application
- Attachment for tracked excavators in the 22–40 t class
- Suitable for loading, gripping and sorting of loose and bulky materials on construction and demolition sites
- Attachment plate compatible with indicated breaker models for combined operations
Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.
Characteristics / technical specifications
- Operating excavator weight: 22 ÷ 40 ton
- Maximum working pressure: 350 bar
- Maximum oil delivery: 130 l/min
- Hydraulic connections for cylinder: 3/4”
- Maximum rotation pressure: 110 bar
- Maximum rotation oil flow: 30 l/min
- Hydraulic connections for rotation: 1/2”
- Maximum force at blade/teeth: 10000 Kg
- Compatibility of attachment plate with breaker: HP 3000 ÷ HP 4000
- LOADING JAWS: (not specified)
- Attachment operating weight*: 2400 Kg
- Load capacity: 1350 l
- Maximum opening: 2700 mm
- Depth: 1100 mm
- Type of carrier: Tracked excavator
