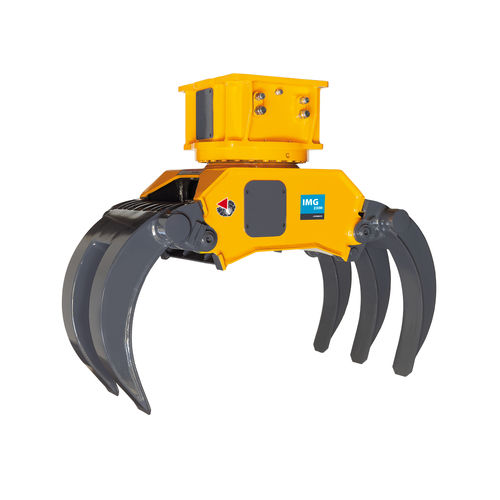

Material handling grapple (Multi Grab) IMG 2300 — H Series

Overview
The IMG 2300 is a multi-purpose material handling grapple designed for tracked excavators. It features a 3+2 jaw configuration for sorting and handling bulky materials and is compatible with hydraulic breakers in the HP 3000 ÷ HP 4000 range. Recommended carrier weight: 22 ÷ 40 ton.

Applications

• Sorting and handling construction and demolition materials
• Site clearance and recycling operations
• Loading and unloading bulk materials

Technical specifications
Excavator weight: 22 ÷ 40 ton
Maximum working pressure: 350 bar
Maximum oil delivery (cylinder): 130 l/min
Hydraulic connections for cylinder: 3/4”
Maximum rotation pressure: 110 bar
Maximum rotation oil flow: 30 l/min
Hydraulic connections for rotation: 1/2”
Maximum force at blade/teeth: 10000 Kg
Compatibility of attachment plate with breaker: HP 3000 ÷ HP 4000
Jaw configuration: 3+2 (material handling jaws)
Attachment operating weight*: 2450 Kg
Maximum opening: 1710 mm
Depth: 1050 mm
Type of carrier: Tracked excavator

Notes
*The operating weight includes the mounting bracket compliant with Indeco construction standards. Illustrations and numerical data are indicative and may be modified without notice. We reserve the right to update specifications for product improvement and development.

Features / technical specifications

• Excavator weight: 22 ÷ 40 ton
• Maximum working pressure: 350 bar
• Maximum oil delivery (cylinder): 130 l/min
• Hydraulic connections for cylinder: 3/4”
• Maximum rotation pressure: 110 bar
• Maximum rotation oil flow: 30 l/min
• Hydraulic connections for rotation: 1/2”
• Maximum force at blade/teeth: 10000 Kg
• Compatibility of attachment plate with breaker: HP 3000 ÷ HP 4000
• Jaw configuration: 3+2
• Attachment operating weight*: 2450 Kg
• Maximum opening: 1710 mm
• Depth: 1050 mm
• Type of carrier: Tracked excavator
